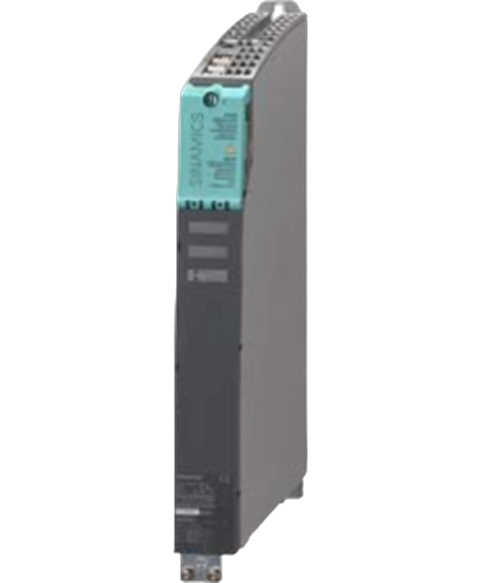

Siemens 6SL3120-1TE28-5AA3
The Siemens 6SL3120-1TE28-5AA3 is a single motor module designed for efficient control applications. This unit can output voltage from 0 to 0.717 times the DC-link voltage, handling a DC-link voltage range of 510 to 720 VDC, with a capacitance of 1880 µF.
This Siemens 6SL3120-1TE28-5AA3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805610489.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3120-1TE28-5AA3 |
| UPC | 662643432909 |
| Weight | 20.00 lbs (9.07 kg) |
| Module Type | Single motor module |
| Output Voltage Range | 0 to 0.717 × DC-link voltage |
| DC-link Voltage Range | 510 to 720 VDC |
| DC-link Capacitance | 1880 µF |
| Control Electronics Supply Voltage | 24 VDC (20.4–28.8 VDC) |
| Control Electronics Power Consumption | 1.5 A |
| Power Rating (Based on Nominal Current) | 46 kW |
| Cooling Mechanism | Internal fan-based cooling |
| Airflow Requirement for Cooling | 160 m³/h |
| Energy Loss During Operation | 786 W |
| Rated Current (ln) | 85 A |
| Base-Load Current (IH) | 68 A |
| Intermittent Duty Current (Is6) (40%) | 110 A |
| Peak Current (Imax) | 141 A |
| Brand | Siemens |
