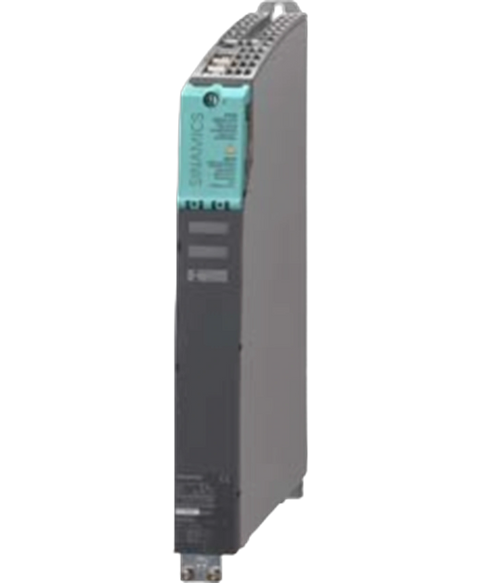

Siemens 6SL3120-1TE24-5AA3
The Siemens 6SL3120-1TE24-5AA3 is a single motor module within the SINAMICS series. It weighs 9 kilograms and operates efficiently at a nominal current of 45 A.
This Siemens 6SL3120-1TE24-5AA3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26801445202.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3120-1TE24-5AA3 |
| UPC | 662643432862 |
| Weight | 22.00 lbs (9.98 kg) |
| Module Type | Single motor module |
| Nominal Current | 45 A |
| Continuous Current Rating | 38 A |
| Short-term Current (40% Duty Cycle) | 60 A |
| Maximum Current | 85 A |
| Voltage Output Range | 0 to 0.717 times DC-link voltage |
| Operating DC-link Voltage Range | 510 to 720 VDC |
| DC-link Capacitance | 1175 microfarads |
| Control Electronics Power Supply | 24 VDC (20.4 to 28.8 V) |
| Electronics Power Draw | 1.05 A |
| Cooling System | Internal fan |
| Airflow Requirement for Cooling | 112 m³/h |
| Maximum Temperature without Derating | 40 degrees Celsius |
| Brand | Siemens |
