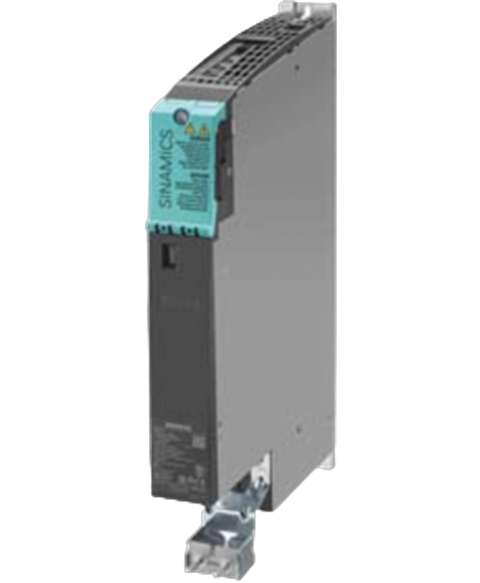

Siemens 6SL3120-1TE23-0AD0
The 6SL3120-1TE23-0AD0 is a motor module from Siemens' SINAMICS S120 series, specifically designed to provide flexible operational capabilities. It supports a DC link voltage range of 510 to 720 volts and requires an electronics power supply of 24 volts with a tolerance of -15% to +20%.
This Siemens 6SL3120-1TE23-0AD0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805459114.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS S120 |
| Part Number | 6SL3120-1TE23-0AD0 |
| UPC | 804766208263 |
| Weight | 17.00 lbs (7.71 kg) |
| Name | Motor Module |
| DC Link Voltage | DC 510 ... 720 V |
| Electronics Power Supply | DC 24 V -15 % / +20 % |
| Current Demand, Max. | 0.80 A |
| DC-Link Current Id | 36.0 A |
| Rated Pulse Frequency | 4.00 kHz |
| DC Link Busbars | 200 A |
| DC Link Capacitance | 705 µF |
| Installation Altitude | 1,000 m |
| Cooling Air Requirement | 0.016 m³/s |
| Ambient Temperature | 0 ... 40 °C |
| Power Loss, Typ./Max | 0.26 kW / 0.31 kW |
| Degree of Protection | IP20 |
| Brand | Siemens |
