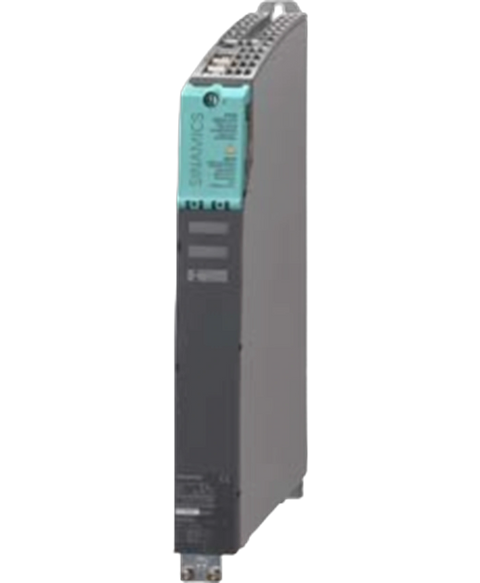

Siemens 6SL3120-1TE23-0AA4
The Siemens 6SL3120-1TE23-0AA4, a single motor module in the SINAMICS series, performs efficiently with a rated output current of 30 AACrms. This model supports a peak output current of 56 AACrms and operates effectively within a DC-link voltage range of 510 to 720 VDC.
This Siemens 6SL3120-1TE23-0AA4 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805551459.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Single Motor Module |
| Product Line | SINAMICS |
| Part Number | 6SL3120-1TE23-0AA4 |
| UPC | 887621457907 |
| Weight | 12.00 lbs (5.44 kg) |
| Rated Output Current (In) | 30 AACrms |
| Base Load Current (IH) | 25.5 AACrms |
| Intermittent Duty Current (Is6) | 40 AACrms (at 40%) |
| Peak Output Current (Imax) | 56 AACrms |
| Output Voltage | 0 to 0.717 x DC-link voltage |
| DC-Link Voltage Range | 510 to 720 VDC |
| DC-Link Current Capacity | 36 ADC |
| DC-Link Capacitance | 705 μF |
| Power Supply for Electronics | 24 VDC (Operating range: 20.4 to 28.8 VDC) |
| Electronics Power Consumption | 0.8 ADC |
| Unit Power Rating (In) | 16 kW (at 600 VDC, 4 kHz) |
| Maximum Power Loss | 309.2 W (including electronics) |
| Cooling System | Internal fan with 56 m³/h air requirement |
| Operating Temperature Range | Up to 40°C without derating; up to 55°C with derating |
| Brand | Siemens |
