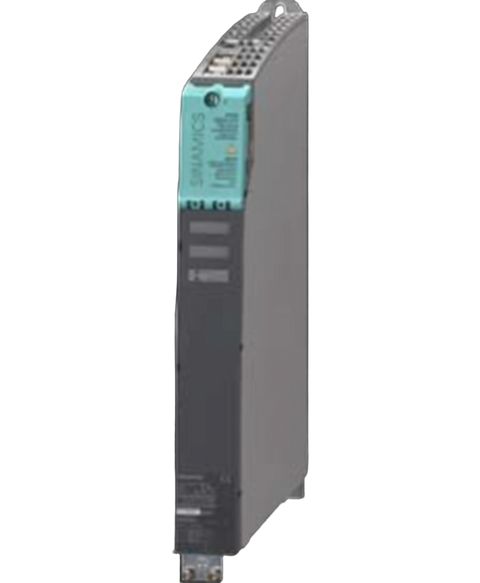

Siemens 6SL3120-1TE23-0AA3
The Siemens 6SL3120-1TE23-0AA3 is a booksize single motor module designed for high-efficiency operations. It provides substantial power output and reliable performance parameters, making it ideal for various industrial applications.
This Siemens 6SL3120-1TE23-0AA3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805673943.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3120-1TE23-0AA3 |
| UPC | 662643432848 |
| Weight | 11.00 lbs (4.99 kg) |
| Module Type | Booksize single motor module |
| Power Dissipation | 309.2 watts |
| Power Output (600 VDC Operation) | 16 kilowatts (rated current); 13.7 kilowatts (continuous) |
| Power Supply for Electronics | 24 volts DC (operates within 20.4 to 28.8 volts) |
| Output Voltage Range | 0 to 0.717 times the DC-link voltage |
| DC-Link Voltage Operating Range | 510 to 720 volts DC |
| DC-Link Capacitance | 705 microfarads |
| Overvoltage Shutdown Level | 820 volts DC ± 2% |
| Undervoltage Shutdown Level | 380 volts DC ± 2% |
| Cooling System | Integrated fan cooling |
| Airflow Requirement for Cooling | 56 m³/h |
| Maximum Current | 56 amperes |
| Nominal Current | 30 amperes |
| Intermittent Current (40% Duty) | 40 amperes |
| Continuous Current Rating | 25.5 amperes |
| Brand | Siemens |
