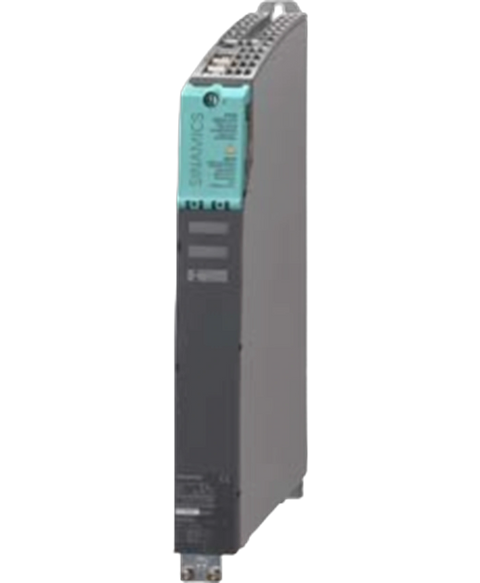

Siemens 6SL3120-1TE21-8AA3
The Siemens 6SL3120-1TE21-8AA3 is a single motor control unit weighing approximately 5 kg. It operates with a nominal current output of 18 A and is designed for efficient cooling with an internal air circulation fan.
This Siemens 6SL3120-1TE21-8AA3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805407995.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3120-1TE21-8AA3 |
| UPC | 662643432824 |
| Weight | 11.00 lbs (4.99 kg) |
| Product Category | Single Motor Control Unit |
| Cooling Configuration | Internal Air Circulation Fan |
| Overvoltage Cutoff Threshold | 820 VDC ± 2% |
| Undervoltage Cutoff Threshold | 380 VDC ± 2% |
| Control Electronics Voltage Supply | 24 VDC (Range: 20.4 to 28.8 VDC) |
| Current Drawn by Electronics at 24 VDC | 0.85 A |
| Power Capacity Based on Nominal Current | 9.7 kW |
| Nominal Output Current | 18 A |
| Continuous Load Current | 15.3 A |
| Short-term Duty Current at 40% | 24 A |
| Maximum Allowable Current | 36 A |
| Output Voltage Span | 0 to 0.717 times DC-Link Voltage |
| DC-Link Voltage Operational Range | 510 to 720 VDC |
| DC-Link Capacitance Value | 220 µF |
| Brand | Siemens |
