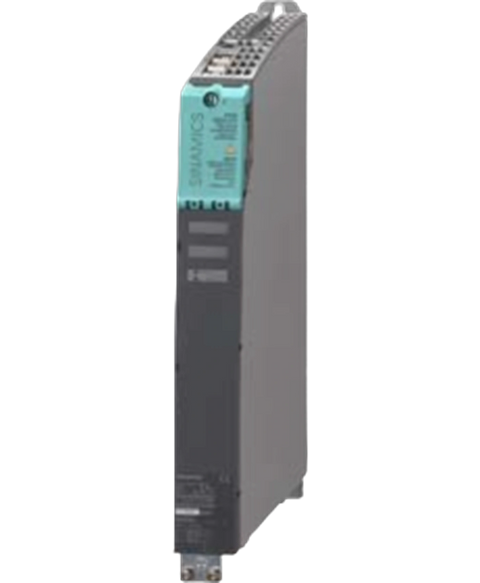

Siemens 6SL3120-1TE21-0AA3
The 6SL3120-1TE21-0AA3 from Siemens, part of the SINAMICS series, is a compact booksize single motor module designed for efficient performance. Operating with an internal air-cooling mechanism, it manages a cooling air volume of 29.6 m³,h for optimal temperature regulation.
This Siemens 6SL3120-1TE21-0AA3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805632834.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Booksize single motor module |
| Product Line | SINAMICS |
| Part Number | 6SL3120-1TE21-0AA3 |
| UPC | 662643432817 |
| Weight | 11.00 lbs (4.99 kg) |
| Cooling Method | Air-cooled internally |
| Cooling Air Volume | 29.6 m³/h |
| Ambient Temperature Limit | 40°C (55°C with derating) |
| Rated Output Current | 9 A RMS |
| Base-load Current | 7.7 A RMS |
| Intermittent Duty Current | 10 A RMS (40%) |
| Peak Current | 18 A |
| Power Loss | 100.4 W |
| Unit Rating | 4.8 kW |
| DC-link Capacitance | 110 µF |
| Maximum DC-link Current | 11:00 AM |
| Output Voltage | 0 to 0.717 × DC-link voltage |
| Brand | Siemens |
