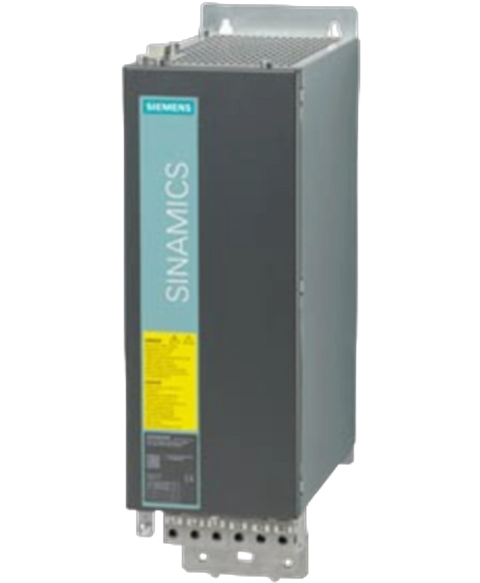

Siemens 6SL3100-0BE23-6AB0
Siemens offers the compact S120 Interface Module 6SL3100-0BE23-6AB0 in their SINAMICS series. This module is suitable for 380 to 480 V AC three-phase input, providing a nominal current of 0.49 A and a built-in resistance of 1440 Ω, with a permissible tolerance of ±10%.
This Siemens 6SL3100-0BE23-6AB0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26841496009.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3100-0BE23-6AB0 |
| UPC | 662643353006 |
| Weight | 40.00 lbs (18.14 kg) |
| Module Type | S120 Interface Module (Compact) |
| Input Voltage Range | 380–480 V AC (3-phase) |
| Built-in Resistance | 1440 Ω (±10%) |
| Nominal Current | 0.49 A |
| 24 V DC Power Input | 1.6 A |
| Cooling Method | Integrated air cooling |
| Airflow Rate | 0.04 m³/s (1.41 ft³/s) |
| Energy Loss | 0.34 kW |
| Noise Level | 60 dB |
| Switching at 250 V AC | 0.75 A |
| Switching at 60 V DC | 0.75 A |
| Protection Class | IP20 / UL Open |
| Terminal Type | Screw terminals, PE M6 screw |
| Brand | Siemens |
