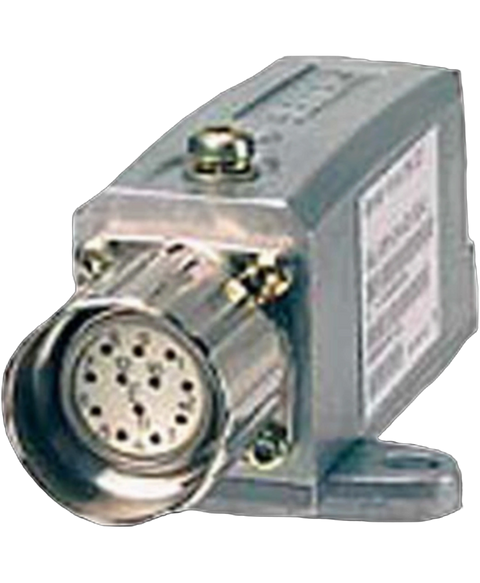

Siemens 6SL3055-0AA00-5EA3
The 6SL3055-0AA00-5EA3 by Siemens is a sensor module tailored for high-performance applications within the SINAMICS series. It supports incremental encoders with a 1 Vpp sin,cos interface and operates at a maximum encoder frequency of 500 kHz.
This Siemens 6SL3055-0AA00-5EA3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805600765.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3055-0AA00-5EA3 |
| UPC | 662643513714 |
| Weight | 3.00 lbs (1.36 kg) |
| Product Category | Sensor Module |
| Encoder Supported | Incremental encoder with 1 Vpp sin/cos interface |
| Maximum Encoder Frequency | 500 kHz |
| Signal Interpolation Capability | Up to 16,384 times, 14-bit resolution |
| Input Voltage Requirement | 24 V DC |
| Current Consumption | 0.11 A (encoder not included) |
| Output Interface | DRIVE-CLiQ connection, rated IP67 |
| Sensor Voltage Supply | 5 V DC at 0.35 A |
| Protection Rating | IP67 for harsh industrial applications |
| Measuring System Cable Length | Maximum of 3 meters (9.84 feet) |
| Drive Control Cable Length | Maximum of 100 meters (328.08 feet) |
| Physical Size | 58 mm x 44 mm x 112 mm (width x height x depth) |
| Brand | Siemens |
