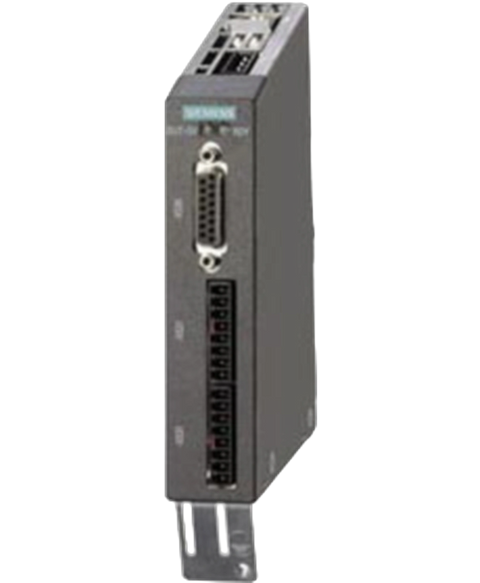

Siemens 6SL3055-0AA00-5CA2
The Siemens 6SL3055-0AA00-5CA2, belonging to the SINAMICS S120 series, is a sensor module designed for efficient encoder integration. This module has the ability to handle a range of incremental encoders (TTL,HTL) and SSI encoders, offering a maximum encoder frequency of up to 500 kHz with an absolute position resolution of 30 bits for SSI devices.
This Siemens 6SL3055-0AA00-5CA2 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805610198.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Sensor Module |
| Product Line | SINAMICS S120 |
| Part Number | 6SL3055-0AA00-5CA2 |
| UPC | 662643432688 |
| Weight | 0.44 lbs (0.20 kg) |
| Encoder Compatibility | Supports incremental encoders (TTL/HTL) and SSI encoders |
| Maximum Encoder Frequency | Up to 500 kHz |
| SSI Baud Rate | 100 to 1000 kBaud |
| Resolution | Absolute position resolution of 30 bits for SSI encoders |
| Power Supply | 24 V DC with a power draw of 0.20 A |
| Sensor Supply | Provides 0.35 A at 5 V DC and 35 V DC for onboard position encoder interface |
| Maximum Line Length | 100 m for incremental encoder TTL and unipolar HTL, 300 m for bipolar HTL, 100 m for absolute encoder SSI |
| Degree of Protection | IP20 / UL open type |
| Power Loss | Max. of 10.0 W |
| Conductor Cross-Section | Line side supports up to 2.5 mm² (AWG 14) |
| Onboard Position Encoder Interface | Equipped with M4 screw PE conductor |
| Compliance Standards | Meets cULus standards |
| Brand | Siemens |
