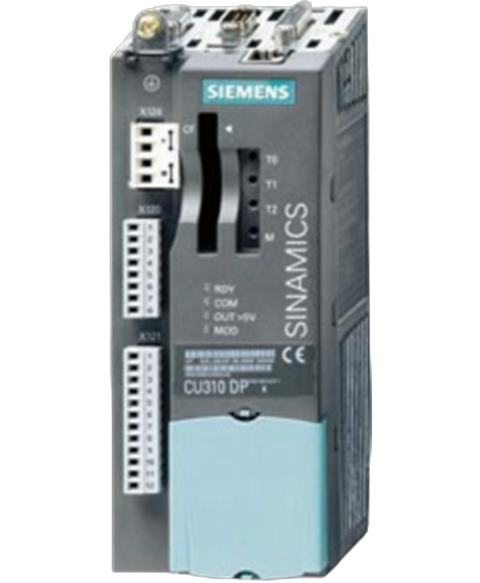

Siemens 6SL3040-0LA00-0AA1
The Siemens 6SL3040-0LA00-0AA1 is a CU310 DP Control Unit within the SINAMICS series. It operates on a 24 V DC supply and consumes 0.35 A for the control unit and 0.5 A for the associated PM340 Power Module.
This Siemens 6SL3040-0LA00-0AA1 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805430116.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product type | CU310 DP Control Unit |
| Product Line | SINAMICS |
| Part Number | 6SL3040-0LA00-0AA1 |
| UPC | 662643432381 |
| Weight | 5.00 lbs (2.27 kg) |
| Operating Voltage | 24 V DC |
| Power Consumption | 0.35 A for CU310 DP; 0.5 A for PM340 Power Module |
| Fuse Protection Limit | Up to 20 A |
| Digital Input Configuration | 4 floating inputs; 4 bidirectional non-floating inputs/outputs |
| Digital Input Voltage Specifications | Range: -3 V to +30 V |
| High-Speed Input Response Times | 5 µs for L to H; 50 µs for H to L |
| Digital Output Voltage Level | 24 V DC |
| Maximum Current per Output Channel | 500 mA |
| Supported Encoder Types | TTL and HTL incremental encoders |
| Maximum Encoder Cable Length | 100 m for unipolar signals; 300 m for bipolar signals (HTL only) |
| Wire Cross-Section Capacity | 2.5 mm² for power supply; 0.5 mm² for input/output connections |
| Heat Dissipation | Below 20 W |
| Physical Dimensions | Width: 73 mm; Height: 183.2 mm; Depth: 89.6 mm |
| Brand | Siemens |
