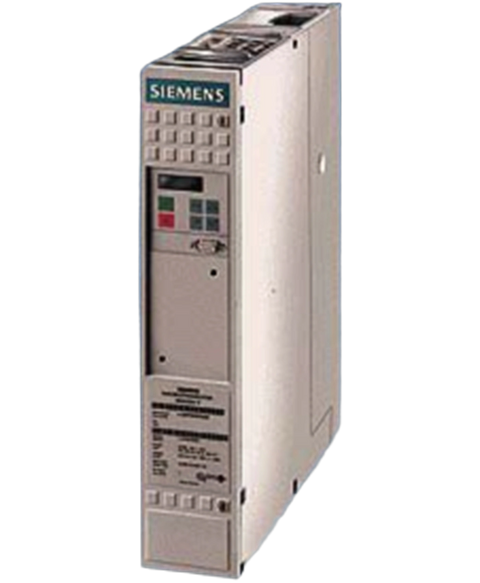

Siemens 6SE7090-0XX84-0AB0
The 6SE7090-0XX84-0AB0 from Siemens is a control module tailored for precise motion management. It supports both closed-loop and open-loop control methods, and its design integrates vector control capability.
This Siemens 6SE7090-0XX84-0AB0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26801727977.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Control Module |
| Product Line | SIMOVERT MASTERDRIVES |
| Part Number | 6SE7090-0XX84-0AB0 |
| UPC | 662643065886 |
| Weight | 2.00 lbs (0.91 kg) |
| Control Methods | Closed-loop and open-loop control |
| Vector Control Capability | Yes |
| Serial Interfaces | 1 x RS232/RS485 for PC or OP1S; 1 x USS bus (RS485) |
| Control Terminal Strips | 1 for HTL unipolar pulse encoder and motor temperature sensor; 2 with digital and analog I/Os |
| Digital Inputs/Outputs | 4 configurable digital I/Os; 3 digital inputs |
| Analog Inputs/Outputs | 2 analog inputs (current/voltage); 2 analog outputs (current/voltage) |
| Auxiliary Voltage Supply | 24V DC (max 150 mA) for inputs and outputs |
| Auxiliary Voltage for Potentiometer | 10V DC (max 5 mA) |
| Pulse Encoder Connection | HTL unipolar pulse encoder |
| Motor Temperature Sensor Compatibility | PTC/KTY84 sensors |
| Operating Temperature Range | -25°C to +60°C |
| Brand | Siemens |
