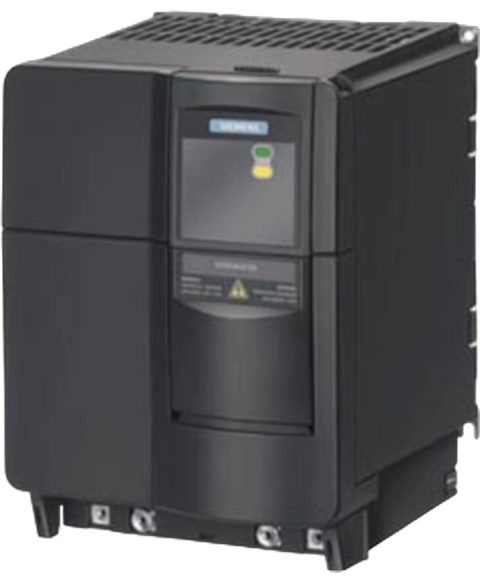

Siemens 6SE6440-2UD27-5CA1
The Siemens 6SE6440-2UD27-5CA1 is a variable-frequency drive in the MICROMASTER 440 series. It is optimized for motor applications requiring a power rating of 7.5 kW (10 hp) and operates with an efficiency of up to 97%.
This Siemens 6SE6440-2UD27-5CA1 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics g110 range and is referenced internally as PartLogic SKU PL26801449619.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | MICROMASTER |
| Part Number | 6SE6440-2UD27-5CA1 |
| UPC | 783087635753 |
| Weight | 6.00 lbs (2.72 kg) |
| Inverter Type | MICROMASTER 440 Variable Frequency Drive |
| Motor Power Rating | 7.5 kW (10 hp) |
| Operational Efficiency | Up to 97% |
| Programmable Digital Inputs | 6 isolated options available |
| Configurable Analog Inputs | Two (±10 V, 0–20 mA, 0–10 V) |
| EMC Compliance | Filters for EN55011 Class A/B |
| Apparent Power | 14.0 kVA |
| Voltage Input Range | Three-phase 380–480 V ± 10% |
| Maximum Current (CT) | 18.4 A |
| Maximum Current (VT) | 26.0 A |
| Frequency Range | 47–63 Hz |
| Enclosure Rating | IP20 |
| Control Techniques | V/f Control, FCC, Sensorless Vector, and more |
| Overload (Constant Torque) | 150% for 60 s; 200% for 3 s |
| Overload (Variable Torque) | 110% continuous |
| Brand | Siemens |
