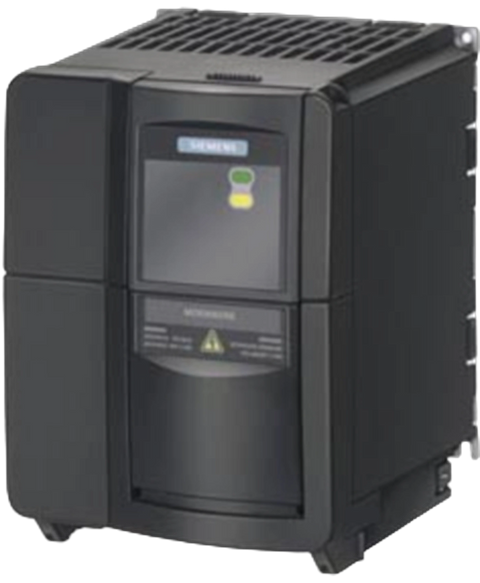

Siemens 6SE6440-2AD22-2BA1
Siemens' 6SE6440-2AD22-2BA1 is a variable frequency drive suited for constant and square-law torque applications. Designed for a 380–480 V AC three-phase input range, it provides efficient output power of 2.2 kW (3.0 HP).
This Siemens 6SE6440-2AD22-2BA1 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics g110 range and is referenced internally as PartLogic SKU PL26801432099.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Variable Frequency Drive (Constant & Square-law Torque) |
| Product Line | MICROMASTER |
| Part Number | 6SE6440-2AD22-2BA1 |
| UPC | 783087635845 |
| Weight | 8.00 lbs (3.63 kg) |
| Input Voltage Range | 380–480 V AC 3-phase (±10%) |
| Input Frequency | 47–63 Hz |
| Rated Output Power | 2.2 kW / 3.0 HP |
| Output Voltage | 480 V AC 3-phase |
| Rated Output Current (HO) | 5.9 A |
| High Overload Capacity | 150% current for 60 s, followed by 100% for 240 s (300 s cycle) |
| Short-term Overload | 200% current for 3 s (peak) |
| Output Frequency Range | 0–650 Hz (operationally limited to 550 Hz) |
| Pulse Switching Frequency | 4000 Hz |
| Motor Terminal Cross-section | 6.0 mm² |
| Physical Dimensions (H×W×D) | 202 × 149 × 172 mm |
| Enclosure Protection Standard | IP20 |
| Operating Temperature Range | -10°C to +50°C |
| Integrated EMC Filter | Class A compliance (built-in) |
| Brand | Siemens |
