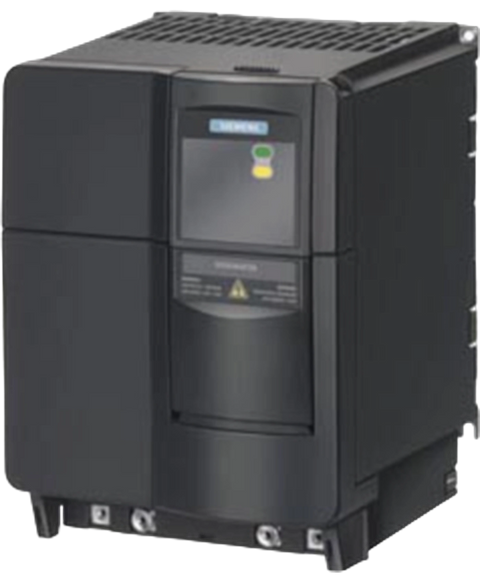

Siemens 6SE6430-2UD31-5CA0
The Siemens 6SE6430-2UD31-5CA0 is an AC drive inverter from the MICROMASTER series with a power capacity of 15 kW, equivalent to 20 horsepower. It accepts a three-phase AC supply voltage ranging from 380 to 480 V ±10%, operating efficiently across a frequency range of 47 to 63 Hz.
This Siemens 6SE6430-2UD31-5CA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics g110 range and is referenced internally as PartLogic SKU PL26805594311.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | MICROMASTER |
| Part Number | 6SE6430-2UD31-5CA0 |
| UPC | 783087661387 |
| Weight | 5.50 lbs (2.49 kg) |
| Product Category | AC Drive (Inverter) |
| Power Capacity | 15 kW / 20 Horsepower |
| Input Supply Voltage | 380-480 V ±10% |
| Input Configuration | Three-Phase AC |
| Mains Frequency | 47-63 Hz |
| Output Voltage | Matches Input Three-Phase Voltage |
| Output Frequency Range | 0-650 Hz (Production Limit: 550 Hz) |
| Overload Rating | 140% for 3s, 110% for 57s within 300s cycle |
| Nominal Current (LO) | 32.00 A |
| Energy Efficiency | 0.96 |
| Power Factor | 0.95 |
| Cooling Mechanism | Forced-Air Cooling (Fan) |
| Enclosure Rating | IP20 (UL Open-Type) |
| Physical Size (HxWxD) | 245 x 185 x 195 mm |
| Mass | 5.70 kg |
| Brand | Siemens |
