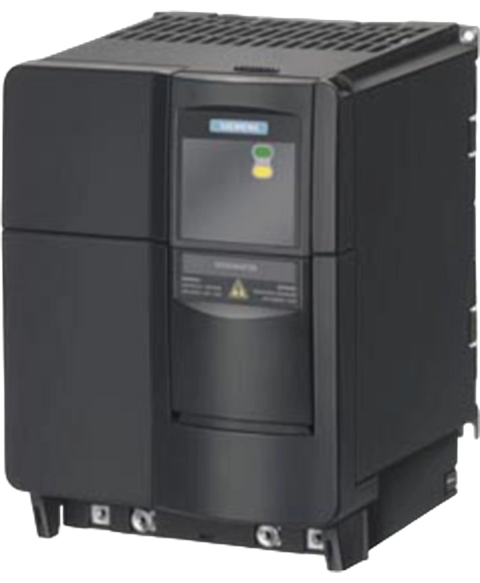

Siemens 6SE6420-2AD24-0BA1
The Siemens 6SE6420-2AD24-0BA1 is an advanced AC drive engineered for demanding applications. Capable of operating within an input voltage range of 380 to 480 volts AC, it supports an output voltage reaching up to 480 volts.
This Siemens 6SE6420-2AD24-0BA1 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics g110 range and is referenced internally as PartLogic SKU PL26805607696.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | AC Drive |
| Product Line | MICROMASTER |
| Part Number | 6SE6420-2AD24-0BA1 |
| UPC | 783087683372 |
| Weight | 7.31 lbs (3.32 kg) |
| Input Voltage Range | 380-480V AC, tolerance ±10% |
| Output Voltage Range | 0 to 480V AC |
| Rated Power Capacity | 4 kW for both constant and variable torque |
| Overload Handling | 150% for up to 60 seconds |
| Supported Frequency Range | 47-63 Hz |
| Power Efficiency Factor | 0.95 |
| Operational Efficiency | 96% |
| Control Methods | V/f (linear) and Flux Current Control (FCC) |
| Pulse Frequency Setting | Preconfigured at the factory |
| Enclosure Protection Rating | IP20 |
| Physical Dimensions (H x W x D) | 202 mm × 149 mm × 172 mm |
| Device Mass | 3.3 kg |
| Permissible Ambient Temperature | -10°C to +50°C |
| Integrated EMC Filter | Class A |
| Brand | Siemens |
