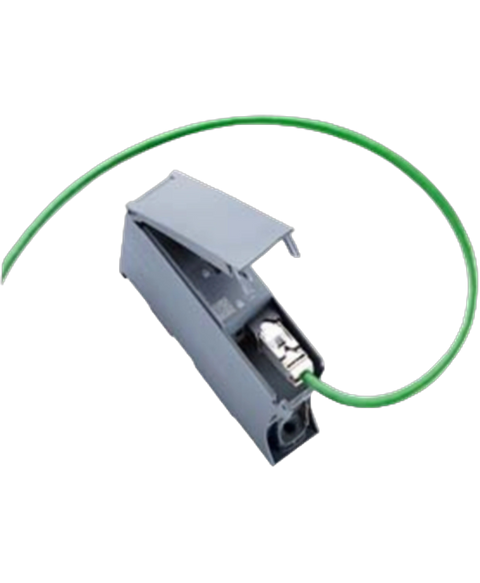

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK75431AX000XE0
Communications processor CP 1543-1 for connection of SIMATIC S7-1500 to Industrial Ethernet; TCP,IP, ISO, UDP, S7 communication, IP Broadcast, Multicast, security (VPN, Firewall) Diagnostics SNMPV1,V3, DHCP, FTP client,server, Email, IPv4,IPv6, Time synchronization via NTP, 1x RJ45 (10,100,1000 MB)
This Siemens 6GK75431AX000XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103545808.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,114.37
(inc. GST)
In Stock
| at the 1st interface | 10 ... 1000 Mbit/s |
| number of interfaces / according to Industrial Ethernet | 1 |
| at the 1st interface / according to Industrial Ethernet | 1RJ45 port |
| type of voltage / of the supply voltage | DC |
| supply voltage / 1 / from backplane bus | 15 V |
| at 15 V | 3 % |
| from backplane bus / at DC / at 15 V / typical | 0.35 A |
| power loss [W] | 5.3 W |
| for vertical installation / during operation | 0 ... 40 °C |
| for horizontally arranged busbars / during operation | 0 ... 60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-1500 single width |
| width | 35 mm |
| height | 142 mm |
| depth | 129 mm |
| net weight | 0.35 kg |
| S7-1500 rail mounting | Yes |
| per CPU / maximum | 8 |
| note | depending on CPU type |
| by means of T blocks / maximum | 118; depending on the system upper limit |
| as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum | 65536 byte |
| number of Multicast stations | 118 |
| maximum | 118; depending on the system upper limit |
| number of active connections / with multi-protocol mode | 118 |
| as client / by means of FTP / maximum | 32 |
| as server / by means of FTP / maximum | 16 |
| as server / by means of HTTP / maximum | 4 |
| as email client / maximum | 1 |
| data volume / as user data for email / maximum | 64 Kibyte |
| TCP/IP | Yes |
| product function / MIB support | Yes |
| SNMP v1 | Yes |
| SNMP v3 | Yes |
| DCP | Yes |
| LLDP | Yes |
| required | STEP 7 Professional V14 (TIA Portal) or higher |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
| product function / web-based diagnostics | Yes; via S7-1500 CPU |
| service / routing / note | IP routing up to 1 Mbps |
| static IP routing | Yes |
| static IP routing IPv6 | No |
| dynamic IP routing | No |
| dynamic IP routing IPv6 | No |
| RIP v1 | No |
| RIPv2 | No |
| RIPnG for IPv6 | No |
| OSPFv2 | No |
| OSPFv3 for IPv6 | No |
| VRRP | No |
| VRRP for IPv6 | No |
| BGP | No |
| PPP | No |
| PPoE via DSL | No |
| firewall version | stateful inspection |
| product function / with VPN connection | IPSec |
| type of encryption algorithms / with VPN connection | AES-256, AES-192, AES-128, 3DES-168, DES-56 |
| type of authentication procedure / with VPN connection | Preshared key (PSK), X.509v3 certificates |
| type of hashing algorithms / with VPN connection | MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| number of possible connections / with VPN connection | 16 |
| IEEE 802.1x (radius) | Yes |
| password protection for Web applications | No |
| ACL - IP-based | No |
| ACL - IP-based for PLC/routing | No |
| switch-off of non-required services | Yes |
| blocking of communication via physical ports | No |
| log file for unauthorized access | Yes |
| product function / SICLOCK support | No |
| product function / pass on time synchronization | Yes |
| NTP | Yes |
| certificate of suitability / CE marking | Yes |
| certificate of suitability / UKCA marking | Yes |
| certificate of suitability / cULus approval | Yes |
| certificate of suitability / KC approval | Yes |
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability / RoHS conformity | Yes |
| certificate of suitability / EAC approval | Yes |
| certificate of suitability / ATEX | Yes |
| certificate of suitability / IECEx | Yes |
| certificate of suitability / ULhazloc approval | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability / FM registration | Yes |
| Environmental Product Declaration | Yes |
| total | 187.85 kg |
| during manufacturing | 21.24 kg |
| during operation | 166.26 kg |
| after end of life | 0.35 kg |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
