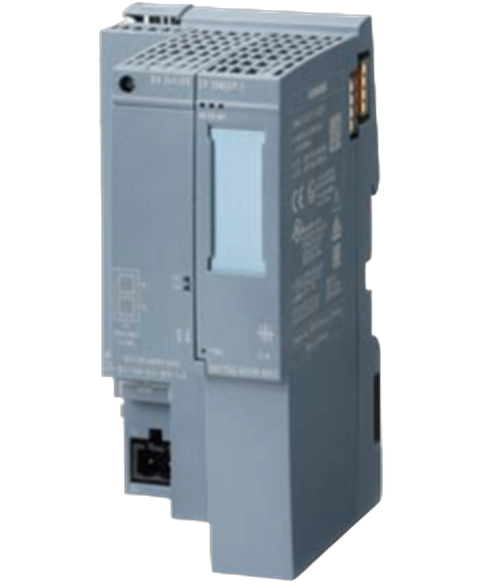

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK75426UX000XE0
Communications processor CP 1542SP-1 for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet; open IE communication (TCP,IP, ISO-on-TCP, UDP), PG,OP, S7 routing, IP broadcast,multicast, SNMPV1, DHCP, Email, IPV4,IPV6, time-of-day synchronization via NTP, access to web server of CPU, BusAdapters required
This Siemens 6GK75426UX000XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103542654.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$930.09
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6GK7542-6UX00-0XE0 |
| at the 1st interface | 10 ... 100 Mbit/s |
| number of interfaces / according to Industrial Ethernet | 1 |
| at the 1st interface / according to Industrial Ethernet | 2via ET 200SP bus adapter (RJ45, FC, SCRJ), integrated switch |
| type of voltage / of the supply voltage | DC |
| supply voltage | 24 V19.2 ... 28.8 V |
| power loss [W] | 6 W |
| for vertical installation / during operation | -30 ... +50 °C |
| for horizontally arranged busbars / during operation | -30 ... +60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| width | 60 mm |
| height | 117 mm |
| depth | 74 mm |
| net weight | 0.18 kg |
| 35 mm DIN-rail mounting | Yes |
| per CPU / maximum | 2 |
| note | 2 CPs can be pluged in per CPU, simultaneous operation with BA Send and CM DP is possible |
| by means of T blocks / maximum | 32 |
| as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum | 65536 byte |
| maximum | 16 |
| with OP connections / maximum | 16 |
| number of active connections / with multi-protocol mode | 32 |
| product function / MIB support | Yes |
| SNMP v1 | Yes |
| SNMP v3 | No |
| DCP | Yes |
| LLDP | Yes |
| required | STEP 7 Professional V14 (TIA Portal) or higher |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
| product function / web-based diagnostics | Yes; via ET 200SP CPU |
| blocking of communication via physical ports | Yes |
| product function / SICLOCK support | Yes |
| product function / pass on time synchronization | No |
| NTP | Yes |
| NTP (secure) | No |
| from NTP-server | Yes |
| certificate of suitability / CE marking | Yes |
| certificate of suitability / UKCA marking | Yes |
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability / RoHS conformity | Yes |
| certificate of suitability / EAC approval | Yes |
| certificate of suitability / ATEX | Yes |
| certificate of suitability / IECEx | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability / FM registration | Yes |
| Environmental Product Declaration | Yes |
| total | 207.05 kg |
| during manufacturing | 19.13 kg |
| during operation | 187.74 kg |
| after end of life | 0.18 kg |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
