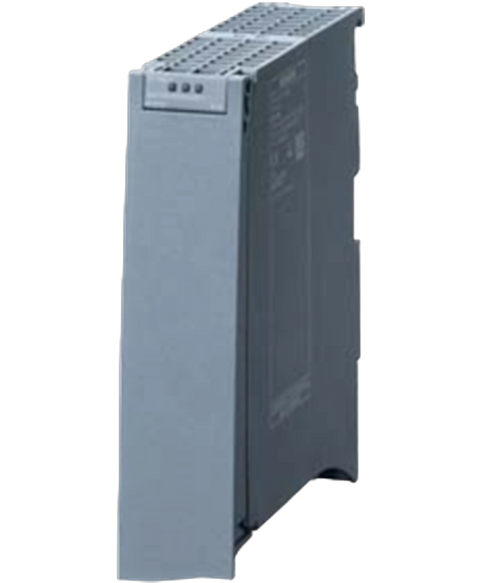

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK7542-5FX00-0XE0
Siemens CP 1542-5 Communication Processor for S7-1500, PROFIBUS (6GK7542-5FX00-0XE0)
This Siemens 6GK7542-5FX00-0XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26801463344.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$834.95
(inc. GST)
In Stock
| at the 1st interface / according to PROFIBUS | 9.6 kbit/s ... 12 Mbit/s19-pin Sub-D socket (RS485) |
| number of interfaces / according to Industrial Ethernet | 0 |
| type of voltage / of the supply voltage | DC |
| supply voltage / 1 / from backplane bus | 15 V |
| at 15 V | 3 % |
| from backplane bus / at DC / at 15 V / typical | 0.1 A |
| power loss [W] | 1.5 W |
| for vertical installation / during operation | 0 ... 40 °C |
| for horizontally arranged busbars / during operation | 0 ... 60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-1500 single width |
| width | 35 mm |
| height | 142 mm |
| depth | 129 mm |
| net weight | 0.27 kg |
| S7-1500 rail mounting | Yes |
| per CPU / maximum | 8 |
| note | depending on CPU type |
| DPV1 | Yes |
| on DP master / operable | 32 |
| of the address range of the inputs / as DP master / total | 2048 byte |
| of the address range of the outputs / as DP master / total | 2048 byte |
| of the address range of the inputs / per DP device | 244 byte |
| of the address range of the outputs / per DP device | 244 byte |
| DPV0 | Yes |
| of the address range of the inputs / as DP device / total | 240 byte |
| of the address range of the outputs / as DP device / total | 240 byte |
| maximum | 16; depending on the system upper limit |
| number of active connections / with multi-protocol mode | 16 |
| TCP/IP | No |
| required | STEP 7 Professional V12 SP1 (TIA Portal) or higher |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| product function / web-based diagnostics | Yes; via S7-1500 CPU |
| product function / pass on time synchronization | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| Environmental Product Declaration | Yes |
| total | 68.56 kg |
| during manufacturing | 21.24 kg |
| during operation | 46.97 kg |
| after end of life | 0.35 kg |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
