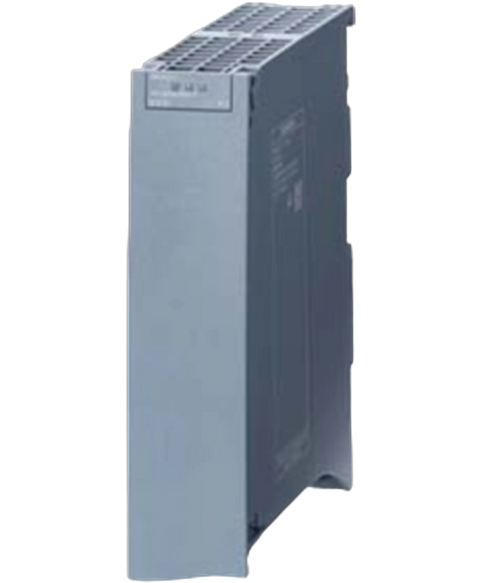

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK7542-1AX00-0XE0
Siemens CM 1542-1 Communication Module for S7-1500, PROFINET (6GK7542-1AX00-0XE0)
This Siemens 6GK7542-1AX00-0XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26801460283.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,517.97
(inc. GST)
In Stock
| at the 1st interface | 10 ... 100 Mbit/s |
| number of interfaces / according to Industrial Ethernet | 1 |
| at the 1st interface / according to Industrial Ethernet | 2RJ45 port |
| type of voltage / of the supply voltage | DC |
| supply voltage / 1 / from backplane bus | 15 V |
| at 15 V | 3 % |
| from backplane bus / at DC / at 15 V / typical | 0.22 A |
| power loss [W] | 3.3 W |
| for vertical installation / during operation | 0 ... 40 °C |
| for horizontally arranged busbars / during operation | 0 ... 60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-1500 single width |
| width | 35 mm |
| height | 142 mm |
| depth | 129 mm |
| net weight | 0.4 kg |
| S7-1500 rail mounting | Yes |
| per CPU / maximum | 8 |
| note | depending on CPU type |
| by means of T blocks / maximum | 64; depending on the system upper limit |
| as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum | 65536 byte |
| number of Multicast stations | 6 |
| maximum | 64; depending on the system upper limit |
| number of active connections / with multi-protocol mode | 64 |
| product function / PROFINET IO controller | Yes |
| number of PN IO devices / on PROFINET IO controller / operable / total | 128 |
| number of PN IO IRT devices / on PROFINET IO controller / operable | 64 |
| number of external PN IO lines / with PROFINET / per rack | 10 |
| as user data for input variables / as PROFINET IO controller / maximum | 8 Kibyte |
| as user data for output variables / as PROFINET IO controller / maximum | 8 Kibyte |
| as user data for input variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte |
| as user data for output variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte |
| as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 256 byte |
| as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 256 byte |
| product function / PROFINET IO device | Yes |
| as user data for input variables / as PROFINET IO device / maximum | 8192 byte |
| as user data for output variables / as PROFINET IO device / maximum | 8192 byte |
| as user data for input variables / for each sub-module as PROFINET IO device | 256 byte |
| as user data for output variables / for each sub-module as PROFINET IO device | 256 byte |
| as user data for the consistency area for each sub-module | 256 byte |
| number of submodules / per PROFINET IO-Device | 32 |
| TCP/IP | Yes |
| product function / MIB support | Yes |
| SNMP v1 | Yes |
| DCP | Yes |
| LLDP | Yes |
| required | STEP 7 Professional V14 (TIA Portal) or higher |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| product function / web-based diagnostics | Yes; via S7-1500 CPU |
| product feature / switch | Yes |
| switch-managed | No |
| with IRT / PROFINET IO switch | Yes |
| configuration with STEP 7 | Yes |
| service / routing / note | IP routing up to 1 Mbps |
| static IP routing | Yes |
| static IP routing IPv6 | No |
| dynamic IP routing | No |
| dynamic IP routing IPv6 | No |
| RIP v1 | No |
| RIPv2 | No |
| RIPnG for IPv6 | No |
| OSPFv2 | No |
| OSPFv3 for IPv6 | No |
| VRRP | No |
| VRRP for IPv6 | No |
| BGP | No |
| PPP | No |
| PPoE via DSL | No |
| ring redundancy | Yes |
| redundancy manager | Yes |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| switch-off of non-required services | Yes |
| blocking of communication via physical ports | No |
| log file for unauthorized access | No |
| product function / SICLOCK support | Yes |
| product function / pass on time synchronization | Yes |
| NTP | Yes |
| according to IEC 81346-2:2019 | KEC |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| Environmental Product Declaration | Yes |
| total | 124.91 kg |
| during manufacturing | 21.24 kg |
| during operation | 103.32 kg |
| after end of life | 0.35 kg |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
