Siemens 6GK74435DX050XE0

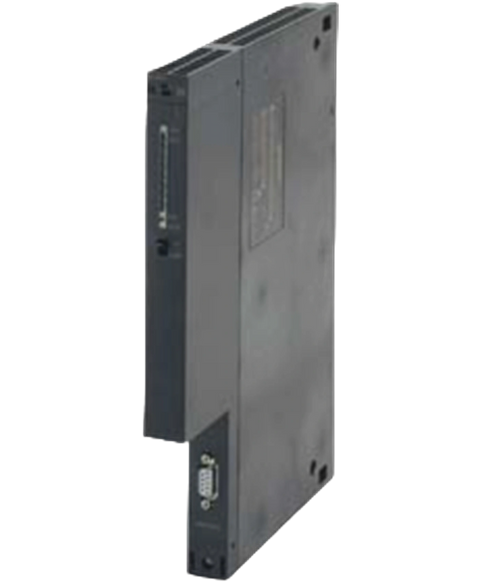

Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 6GK74435DX050XE0

SKU: PL27103537214
MPN: 6GK74435DX050XE0

Communications processor CP 443-5 Extended for connection of SIMATIC S7-400 to PROFIBUS DP, S5-compatible, PG,OP and S7 communication

This Siemens 6GK74435DX050XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103537214.

Brand New - 12 Months Warranty
$1,969.53 (inc. GST)
In Stock

Datasheet

Technical Product Detail Page https://i.siemens.com/1P6GK7443-5DX05-0XE0
at the 1st interface / according to PROFIBUS 9.6 kbit/s ... 12 Mbit/s19-pin Sub-D socket (RS485)
number of interfaces / according to Industrial Ethernet 0
type of voltage / of the supply voltage DC
supply voltage / 1 / from backplane bus 5 V
at 5 V 5 %
from backplane bus / at DC / at 5 V / typical 0.6 A
power loss [W] 3 W
during operation 0 ... 60 °C281.89 kg
during storage -40 ... +70 °C
during transport -40 ... +70 °C
at 25 °C / without condensation / during operation / maximum 95 %
protection class IP IP20
module format Compact module S7-400 single width
width 25 mm
height 290 mm
depth 210 mm
net weight 0.65 kg
per CPU / maximum 14
note The number of CPs that can be operated as DP masters depends on the number of CP 443-1 Advanced processors operating in the S7-400 station as PROFINET IO controllers. Up to 10 CPs can be operated in total: up to 4 as PROFINET IO controllers (CP 443-1 Advanced); up to 10 as DP masters (CP 443-5 Extended)
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum 32
as user data per connection / for open communication / by means of SEND/RECEIVE blocks / maximum 240 byte
DPV1 Yes
on DP master / operable 125
of the address range of the inputs / as DP master / total 4096 byte
of the address range of the outputs / as DP master / total 4096 byte
of the address range of the inputs / per DP device 244 byte
of the address range of the outputs / per DP device 244 byte
maximum 48
without DP / maximum 59
with DP / maximum 54
required STEP 7 V5.4 SP4 or higher / STEP 7 Professional V12 (TIA Portal) or higher
product function / is supported / identification link Yes; acc. to IEC 61406-1:2022
number of possible connections / with data set routing / maximum 30
product function / pass on time synchronization Yes
SIMATIC time synchronization (SIMATIC Time) Yes
certificate of suitability / CE marking Yes
certificate of suitability / UKCA marking Yes
certificate of suitability / Regulatory Compliance Mark (RCM) Yes
certificate of suitability / RoHS conformity Yes
certificate of suitability / EAC approval Yes
certificate of suitability / ATEX Yes
certificate of suitability / IECEx Yes
certificate of suitability / CCC / for hazardous zone according to GB standard Yes
certificate of suitability / FM registration Yes
Marine classification association / American Bureau of Shipping Europe Ltd. (ABS) Yes
Marine classification association / French marine classification society (BV) Yes
Marine classification association / Chinese Classification Society (CCS) Yes
Marine classification association / Det Norske Veritas (DNV) Yes
Marine classification association / Nippon Kaiji Kyokai (NK) Yes
Environmental Product Declaration Yes
total 350.22 kg
during manufacturing 65.61 kg
after end of life 2.72 kg
to website: Selection guide for cables and connectors https://support.industry.siemens.com/cs/ww/en/view/109766358
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to website: Industrial communication https://www.siemens.com/simatic-net
to web page: SiePortal https://sieportal.siemens.com/
to website: Image database https://www.automation.siemens.com/bilddb
to website: CAx-Download-Manager https://siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
