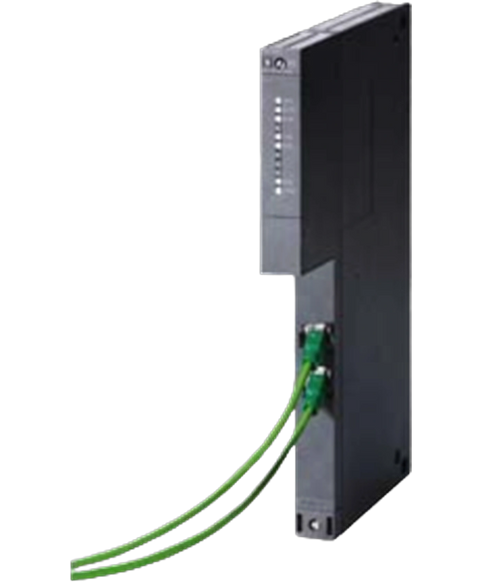

Siemens 6GK7443-1EX20-0XE0
Siemens SIMATIC NET CP 443-1 Communication Processor
This Siemens 6GK7443-1EX20-0XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26805592907.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$670.23
(inc. GST)
In Stock
| at the 1st interface | 10 ... 100 Mbit/s |
| number of interfaces / according to Industrial Ethernet | 2 |
| at the 1st interface / according to Industrial Ethernet | 2RJ45 port |
| C-PLUG | No |
| type of voltage / of the supply voltage | DC |
| supply voltage / 1 / from backplane bus | 5 V |
| at 5 V | 5 % |
| from backplane bus / at DC / at 5 V / typical | 1.4 A |
| power loss [W] | 7.25 W |
| during operation | 0 ... 60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-400 single width |
| width | 25 mm |
| height | 290 mm |
| depth | 210 mm |
| net weight | 0.7 kg |
| per CPU / maximum | 14 |
| note | max. 4 as PN IO ctrl. |
| number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum | 64 |
| as user data per ISO connection / for open communication / by means of SEND/RECEIVE blocks / maximum | 8 Kibyte |
| as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum | 8 Kibyte |
| as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum | 8 Kibyte |
| as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum | 2 Kibyte |
| by means of T blocks / maximum | 64 |
| as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum | 1452 byte |
| maximum | 128; when using several CPUs |
| with PG connections / maximum | 2 |
| number of active connections / with multi-protocol mode | 128 |
| product function / PROFINET IO controller | Yes |
| number of PN IO devices / on PROFINET IO controller / operable / total | 128 |
| number of PN IO IRT devices / on PROFINET IO controller / operable | 128 |
| number of external PN IO lines / with PROFINET / per rack | 4 |
| as user data for input variables / as PROFINET IO controller / maximum | 4 Kibyte |
| as user data for output variables / as PROFINET IO controller / maximum | 4 Kibyte |
| as user data for input variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte |
| as user data for output variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte |
| as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 240 byte |
| as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 240 byte |
| product function / MIB support | Yes |
| SNMP v1 | Yes |
| DCP | Yes |
| LLDP | Yes |
| required | STEP 7 V5.4 SP4 or higher |
| product function / web-based diagnostics | Yes |
| product feature / switch | Yes |
| switch-managed | No |
| with IRT / PROFINET IO switch | Yes |
| configuration with STEP 7 | Yes |
| ring redundancy | Yes |
| redundancy manager | Yes |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| password protection for Web applications | No |
| ACL - IP-based | Yes |
| ACL - IP-based for PLC/routing | No |
| switch-off of non-required services | Yes |
| blocking of communication via physical ports | Yes |
| log file for unauthorized access | No |
| product function / SICLOCK support | Yes |
| product function / pass on time synchronization | Yes |
| NTP | Yes |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
