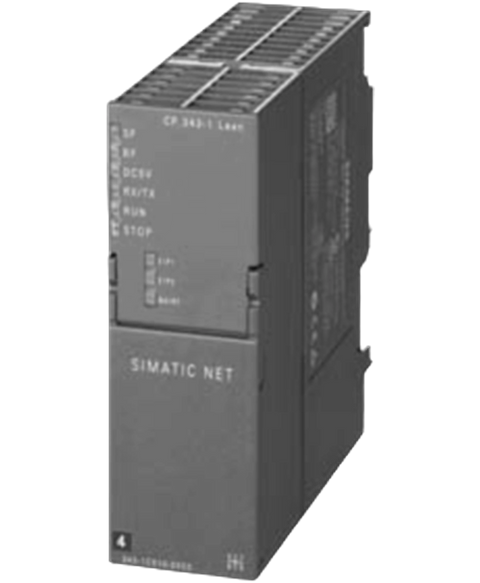

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK7343-1CX10-0XE0
The 6GK7343-1CX10-0XE0 from Siemens is a processor in the SIMATIC series, designed for various automation tasks. It offers a transfer rate range from 10 Mbit,s to 100 Mbit,s and features two interfaces, utilizing RJ45 electrical connections.
This Siemens 6GK7343-1CX10-0XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26801449553.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$643.25
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6GK7343-1CX10-0XE0 |
| at the 1st interface | 10 ... 100 Mbit/s |
| number of interfaces / according to Industrial Ethernet | 2 |
| at the 1st interface / according to Industrial Ethernet | 2RJ45 port |
| for power supply | 12-pole plugable terminal block |
| of Industrial Ethernet interface | RJ45 port |
| type of voltage / of the supply voltage | DC |
| supply voltage / 1 / from backplane bus | 5 V |
| supply voltage | 24 V |
| supply voltage / external | 24 V |
| supply voltage / external / at DC / rated value | 24 V |
| relative positive tolerance / at DC / at 24 V | 20 % |
| relative negative tolerance / at DC / at 24 V | 15 % |
| from backplane bus / at DC / at 5 V / typical | 0.2 A |
| from external supply voltage / at DC / at 24 V / typical | 0.16 A |
| from external supply voltage / at DC / at 24 V / maximum | 0.2 A |
| power loss [W] | 5.8 W |
| for vertical installation / during operation | 0 ... 40 °C |
| for horizontally arranged busbars / during operation | 0 ... 60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-300 single width |
| width | 40 mm |
| height | 125 mm |
| depth | 120 mm |
| net weight | 0.22 kg |
| S7-300 rail mounting | Yes |
| number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum | 8 |
| as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum | 8 Kibyte |
| as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum | 8 Kibyte |
| as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum | 2 Kibyte |
| number of Multicast stations | 8 |
| maximum | 4 |
| of SIMATIC communication / as server | Yes |
| number of active connections / with multi-protocol mode | 12 |
| product function / PROFINET IO controller | No |
| product function / PROFINET IO device | Yes |
| as user data for input variables / as PROFINET IO device / maximum | 512 byte |
| as user data for output variables / as PROFINET IO device / maximum | 512 byte |
| as user data for input variables / for each sub-module as PROFINET IO device | 240 byte |
| as user data for output variables / for each sub-module as PROFINET IO device | 240 byte |
| as user data for the consistency area for each sub-module | 240 byte |
| number of submodules / per PROFINET IO-Device | 32 |
| TCP/IP | Yes |
| product function / MIB support | Yes |
| SNMP v1 | Yes |
| DCP | Yes |
| LLDP | Yes |
| required | STEP 7 V5.4 or higher / STEP 7 Professional V11 (TIA Portal) or higher |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
| product function / web-based diagnostics | Yes |
| product feature / switch | Yes |
| switch-managed | No |
| with IRT / PROFINET IO switch | No |
| configuration with STEP 7 | Yes |
| ring redundancy | Yes |
| redundancy manager | No |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| password protection for Web applications | No |
| ACL - IP-based | Yes |
| ACL - IP-based for PLC/routing | No |
| switch-off of non-required services | Yes |
| blocking of communication via physical ports | Yes |
| log file for unauthorized access | No |
| product function / SICLOCK support | Yes |
| product function / pass on time synchronization | Yes |
| NTP | Yes |
| certificate of suitability / CE marking | Yes |
| certificate of suitability / UKCA marking | Yes |
| certificate of suitability / KC approval | Yes |
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability / RoHS conformity | Yes |
| certificate of suitability / EAC approval | Yes |
| certificate of suitability / ATEX | Yes |
| certificate of suitability / IECEx | Yes |
| certificate of suitability / ULhazloc approval | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability / FM registration | Yes |
| Marine classification association / Polski Rejestr Statkow (PRS) | Yes |
| Environmental Product Declaration | Yes |
| total | 77.4 kg |
| during manufacturing | 26.4 kg |
| during operation | 50.46 kg |
| after end of life | 0.54 kg |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
