Siemens 6GK73425DF000XE0

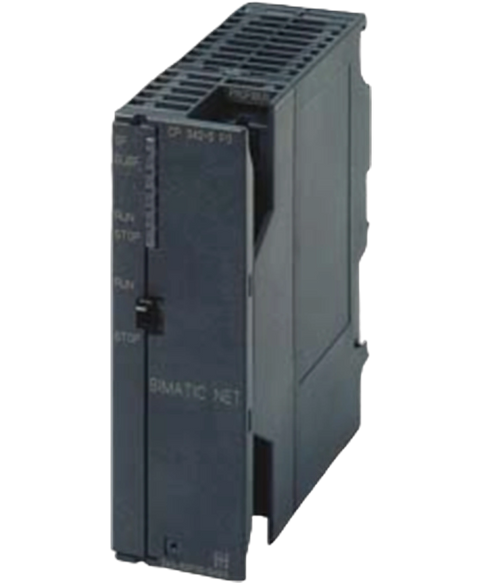

Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 6GK73425DF000XE0

SKU: PL27103440739
MPN: 6GK73425DF000XE0

Communications processor CP 342-5 FO for connection of SIMATIC S7-300 to PROFIBUS DP, S5-compatible, PG,OP and S7 communication

This Siemens 6GK73425DF000XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103440739.

Brand New - 12 Months Warranty
$1,993.67 (inc. GST)
In Stock

Datasheet

at the 1st interface / according to PROFIBUS 9.6 kbit/s ... 12 Mbit/s
number of interfaces / according to Industrial Ethernet 0
for power supply 14-pole terminal block
type of voltage / of the supply voltage DC
supply voltage / 1 / from backplane bus 5 V
supply voltage 24 V
supply voltage / external 24 V
supply voltage / external / at DC / rated value 24 V
relative positive tolerance / at DC / at 24 V 20 %
relative negative tolerance / at DC / at 24 V 15 %
from backplane bus / at DC / at 5 V / typical 0.15 A
from external supply voltage / at DC / at 24 V / typical 0.25 A
power loss [W] 6 W
during operation 0 ... 60 °C
during storage -40 ... +70 °C
during transport -40 ... +70 °C
at 25 °C / without condensation / during operation / maximum 95 %
protection class IP IP20
module format Compact module
width 40 mm
height 125 mm
depth 120 mm
net weight 0.3 kg
S7-300 rail mounting Yes
per CPU / maximum 4
for PCF FOC / maximum 300 m
for POF FOC / maximum 50 m
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum 16
as user data per connection / for open communication / by means of SEND/RECEIVE blocks / maximum 240 byte
DPV0 Yes
on DP master / operable 124
of the address range of the inputs / as DP master / total 2160 byte
of the address range of the outputs / as DP master / total 2160 byte
of the address range of the inputs / per DP device 244 byte
of the address range of the outputs / per DP device 244 byte
of the address range of the diagnostic data / per DP device 240 byte
of the address range of the inputs / as DP device / total 240 byte
of the address range of the outputs / as DP device / total 240 byte
maximum 16
without DP / maximum 32
with DP / maximum 28
TCP/IP No
required STEP 7 V5.1 SP2 or higher / STEP 7 Professional V12 (TIA Portal) or higher
certificate of suitability / CCC / for hazardous zone according to GB standard Yes
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to website: Industrial communication https://www.siemens.com/simatic-net
to website: Image database https://www.automation.siemens.com/bilddb
to website: CAx-Download-Manager https://siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
