Siemens 6GK72435DX300XE0

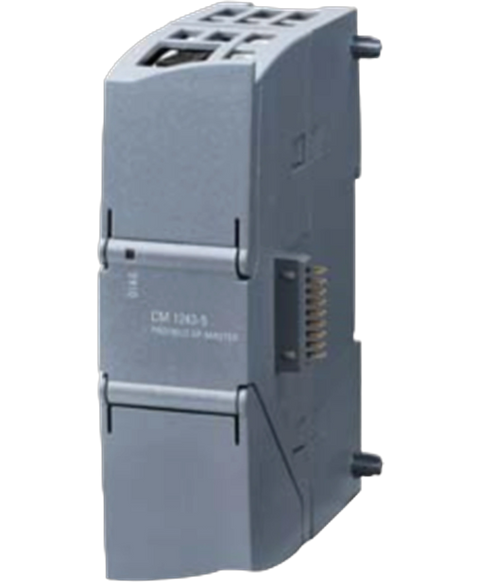

Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 6GK72435DX300XE0

SKU: PL27103437522
MPN: 6GK72435DX300XE0

Communication module CM 1243-5 for connection of SIMATIC S7-1200 to PROFIBUS as DP Master module; PG,OP communication; S7 communication

This Siemens 6GK72435DX300XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103437522.

Brand New - 12 Months Warranty
$715.67 (inc. GST)
In Stock

Datasheet

Technical Product Detail Page https://i.siemens.com/1P6GK7243-5DX30-0XE0
at the 1st interface / according to PROFIBUS 9.6 kbit/s ... 12 Mbit/s19-pin Sub-D socket (RS485)
number of interfaces / according to Industrial Ethernet 0
for power supply 13-pole terminal block
type of voltage / of the supply voltage DC
supply voltage / external 24 V
supply voltage / external / at DC / rated value 24 V
relative positive tolerance / at DC / at 24 V 20 %
relative negative tolerance / at DC / at 24 V 20 %
from external supply voltage / at DC / at 24 V / typical 0.1 A
power loss [W] 2.4 W
for vertical installation / during operation 0 ... 45 °C
for horizontally arranged busbars / during operation 0 ... 55 °C
during storage -40 ... +70 °C
during transport -40 ... +70 °C
at 25 °C / without condensation / during operation / maximum 95 %
protection class IP IP20
module format Compact module S7-1200 single width
width 30 mm
height 100 mm
depth 75 mm
net weight 0.134 kg
35 mm DIN-rail mounting Yes
S7-300 rail mounting No
wall mounting Yes
per CPU / maximum 3
DPV1 YesNo
on DP master / operable 32
of the address range of the inputs / as DP master / total 512 byte
of the address range of the outputs / as DP master / total 512 byte
of the address range of the inputs / per DP device 244 byte
of the address range of the outputs / per DP device 244 byte
of the address range of the diagnostic data / per DP device 240 byte
DPV0 No
maximum 8; max. 4 connections to other S7 stations
with PG connections / maximum 1
with PG/OP connections / maximum 3
without DP / maximum 8
with DP / maximum 8
TCP/IP No
required STEP 7 Basic/Professional
product function / is supported / identification link Yes; acc. to IEC 61406-1:2022
certificate of suitability / CE marking Yes
certificate of suitability / UKCA marking Yes
certificate of suitability / KC approval Yes
certificate of suitability / Regulatory Compliance Mark (RCM) Yes
certificate of suitability / RoHS conformity Yes
certificate of suitability / EAC approval Yes
certificate of suitability / ATEX Yes
certificate of suitability / IECEx Yes
certificate of suitability / CCC / for hazardous zone according to GB standard Yes
certificate of suitability / FM registration Yes
Marine classification association / American Bureau of Shipping Europe Ltd. (ABS) Yes
Marine classification association / French marine classification society (BV) Yes
Marine classification association / Det Norske Veritas (DNV) Yes
Marine classification association / Lloyds Register of Shipping (LRS) Yes
Marine classification association / Nippon Kaiji Kyokai (NK) Yes
Marine classification association / Royal Institution of Naval Architects (RINA) Yes
Environmental Product Declaration Yes
total 89.58 kg
during manufacturing 14.29 kg
during operation 75.11 kg
after end of life 0.18 kg
to website: Selection guide for cables and connectors https://support.industry.siemens.com/cs/ww/en/view/109766358
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to website: Industrial communication https://www.siemens.com/simatic-net
to web page: SiePortal https://sieportal.siemens.com/
to website: Image database https://www.automation.siemens.com/bilddb
to website: CAx-Download-Manager https://siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
