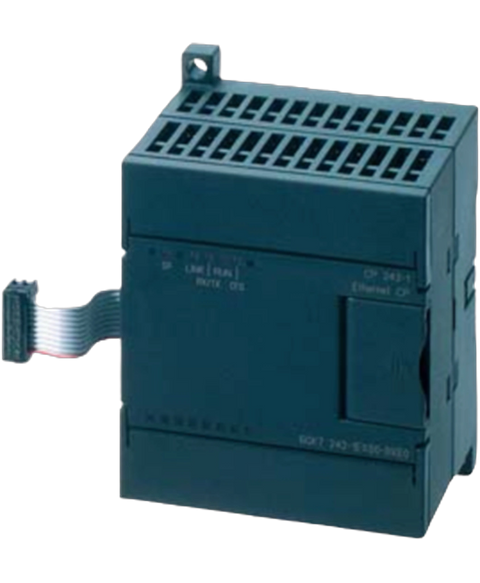

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK7243-1EX01-0XE0
This Siemens 6GK7243-1EX01-0XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26963434358.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$363.51
(inc. GST)
In Stock
| at the 1st interface | 10 ... 100 Mbit/s |
| number of interfaces / according to Industrial Ethernet | 1 |
| at the 1st interface / according to Industrial Ethernet | 1RJ45 port |
| for power supply | 13-pole terminal block |
| type of voltage / of the supply voltage | DC |
| supply voltage / 1 / from backplane bus | 5 V |
| supply voltage / external | 24 V |
| supply voltage / external / at DC / rated value | 24 V |
| relative positive tolerance / at DC / at 24 V | 20 % |
| relative negative tolerance / at DC / at 24 V | 15 % |
| from backplane bus / at DC / at 5 V / typical | 0.06 A |
| from external supply voltage / at DC / at 24 V / typical | 0.053 A |
| from external supply voltage / at DC / at 24 V / maximum | 0.06 A |
| power loss [W] | 1.5 W |
| for vertical installation / during operation | 0 ... 45 °C |
| for horizontally arranged busbars / during operation | 0 ... 55 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-200 double width |
| width | 71.2 mm |
| height | 80 mm |
| depth | 62 mm |
| net weight | 0.15 kg |
| per CPU / maximum | 1 |
| note | - |
| maximum | 8 |
| with PG connections / maximum | 1 |
| with PG/OP connections / maximum | 8 |
| as client / by means of FTP / maximum | 1 |
| as server / by means of HTTP / maximum | 4 |
| as email client / maximum | 1 |
| number of emails with 1024 characters / of email client / maximum | 32 |
| number of access authorizations / of access protection | 8 |
| as flash memory file system | 8 Mibyte |
| number of possible write cycles / of the flash memory cells | 100000 |
| TCP/IP | Yes |
| product function / MIB support | No |
| SNMP v1 | No |
| required | STEP 7-Micro/WIN Version V4.0 SP8 or higher |
| product function / web-based diagnostics | Yes |
| product feature / switch | No |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
