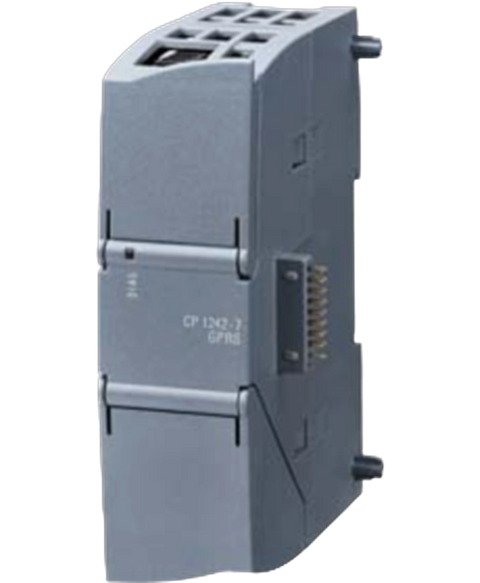

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK72427KX310XE0
CP 1242-7 V2 COMMUNICATIONS PROCESSOR FOR CONNECTING SIMATIC S7-1200 TO GSM,GPRS NETWORK; WEB SERVER ACCESS TO CPU, DATA POINT CONFIGURING
This Siemens 6GK72427KX310XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103434880.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,314.91
(inc. GST)
In Stock
| — with downlink / maximum | 86 kbit/s |
| — with uplink / maximum | 43 kbit/s |
| number of interfaces / according to Industrial Ethernet | 0 |
| for external antenna(s) | 1SMA socket (50 ohms) |
| for power supply | 13-pole terminal block |
| for SIM cards | 1 |
| for SIM card | Standard |
| SMS | Yes |
| GPRS | Yes |
| GSM | Yes |
| UMTS | No |
| LTE | No |
| 850 MHz | Yes |
| 900 MHz | Yes |
| 1800 MHz | Yes |
| 1900 MHz | Yes |
| at operating frequency 900 MHz | 2 W |
| at operating frequency 1800 MHz | 1 W |
| at operating frequency 1900 MHz | 1 W |
| type of voltage / of the supply voltage | DC |
| supply voltage / external | 24 V |
| supply voltage / external / at DC / rated value | 24 V |
| relative positive tolerance / at DC / at 24 V | 20 % |
| relative negative tolerance / at DC / at 24 V | 20 % |
| from external supply voltage / at DC / at 24 V / typical | 0.1 A |
| from external supply voltage / at DC / at 24 V / maximum | 0.22 A |
| power loss [W] | 2.4 W |
| for vertical installation / during operation | -20 ... +60 °C |
| for horizontally arranged busbars / during operation | -20 ... +70 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-1200 single width |
| width | 30 mm |
| height | 100 mm |
| depth | 75 mm |
| net weight | 0.133 kg |
| 35 mm DIN-rail mounting | Yes |
| S7-300 rail mounting | No |
| wall mounting | Yes |
| per CPU / maximum | 3 |
| number of users/telephone numbers / definable / maximum | 10 |
| by means of T blocks / maximum | like CPU |
| as email client / maximum | 1 |
| control center connection | Telecontrol Server Basic |
| by means of a permanent connection | supported |
| by means of demand-oriented connection | supported |
| note | Connection to SCADA system using OPC interface |
| DNP3 | No |
| IEC 60870-5 | No |
| product function / data buffering if connection is aborted | Yes; 64,000 events |
| in send direction / maximum | 3 |
| in receive direction / maximum | 15 |
| diagnostics function / online diagnostics with SIMATIC STEP 7 | Yes |
| program download with SIMATIC STEP 7 | Yes |
| remote firmware update | Yes |
| required | STEP 7 Basic/Professional |
| product function / web-based diagnostics | Yes |
| password protection for teleservice access | Yes |
| encrypted data transmission | Yes |
| NTP | Yes |
| from control center | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
