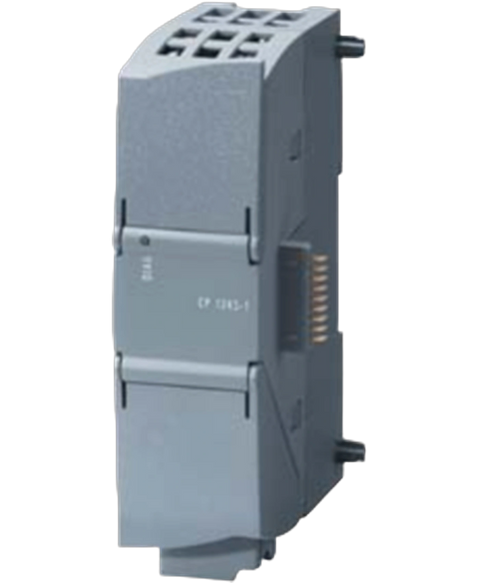

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK7 243-1BX30-0XE0
Siemens CP 1243-1 Communication Processor, RJ45, SIMATIC S7-1200 (6GK7243-1BX30-0XE0)
This Siemens 6GK7 243-1BX30-0XE0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26801717581.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,057.89
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6GK7243-1BX30-0XE0 |
| at the 1st interface | 10 ... 100 Mbit/s |
| number of interfaces / according to Industrial Ethernet | 1 |
| at the 1st interface / according to Industrial Ethernet | 1RJ45 port |
| for power supply | 0 |
| type of voltage / of the supply voltage | DC |
| supply voltage / 1 / from backplane bus | 5 V |
| from backplane bus / at DC / at 5 V / typical | 0.25 A |
| power loss [W] | 1.25 W |
| for vertical installation / during operation | -20 ... +60 °C |
| for horizontally arranged busbars / during operation | -20 ... +70 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-1200 single width |
| width | 30 mm |
| height | 110 mm |
| depth | 75 mm |
| net weight | 0.122 kg |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
| per CPU / maximum | 3 |
| Message Queuing Telemetry Transport (MQTT) | Yes |
| Advanced Message Queuing Protocol (AMQP) | No |
| trigger management | Yes |
| time stamping | Yes |
| product feature / for cloud connectivity / buffered message frame memory | No |
| number of active connections / for cloud connectivity | 1 |
| number of data points per device / maximum | 500 |
| by means of T blocks / maximum | like CPU |
| maximum | like CPU |
| as email client / maximum | 1 |
| node station | No |
| substation | Yes |
| TIM control center | No |
| control center connection | For use with TeleControl Server Basic, WinCC and PCS7 |
| by means of a permanent connection | supported |
| note | Connection to SCADA system via Telecontrol Server Basic and Standard Telecontrol protocols |
| DNP3 | Yes |
| IEC 60870-5 | Yes |
| product function / data buffering if connection is aborted | Yes; 64,000 events |
| number of data points per station / maximum | 500 |
| in send direction / maximum | 3 |
| in receive direction / maximum | 15 |
| diagnostics function / online diagnostics with SIMATIC STEP 7 | Yes |
| program download with SIMATIC STEP 7 | Yes |
| remote firmware update | Yes |
| required | STEP 7 Basic/Professional |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
| product function / web-based diagnostics | Yes |
| firewall version | stateful inspection |
| product function / with VPN connection | IPsec, SINEMA RC |
| type of encryption algorithms / with VPN connection | AES-256, AES-192, AES-128, 3DES-168 |
| type of authentication procedure / with VPN connection | Preshared key (PSK), X.509v3 certificates |
| type of hashing algorithms / with VPN connection | MD5, SHA-1, SHA-2 |
| number of possible connections / with VPN connection | 8 |
| password protection for Web applications | No |
| password protection for teleservice access | No |
| encrypted data transmission | Yes |
| ACL - IP-based | No |
| ACL - IP-based for PLC/routing | No |
| switch-off of non-required services | Yes |
| blocking of communication via physical ports | No |
| log file for unauthorized access | No |
| NTP | Yes |
| NTP (secure) | Yes |
| from NTP-server | Yes |
| from control center | Yes |
| certificate of suitability / CE marking | Yes |
| certificate of suitability / UKCA marking | Yes |
| certificate of suitability / cULus approval | Yes |
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability / RoHS conformity | Yes |
| certificate of suitability / EAC approval | Yes |
| certificate of suitability / ATEX | Yes |
| certificate of suitability / IECEx | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability / FM registration | Yes |
| Marine classification association / Det Norske Veritas (DNV) | Yes |
| Marine classification association / Lloyds Register of Shipping (LRS) | Yes |
| Environmental Product Declaration | Yes |
| total | 89.58 kg |
| during manufacturing | 14.29 kg |
| during operation | 75.11 kg |
| after end of life | 0.18 kg |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
