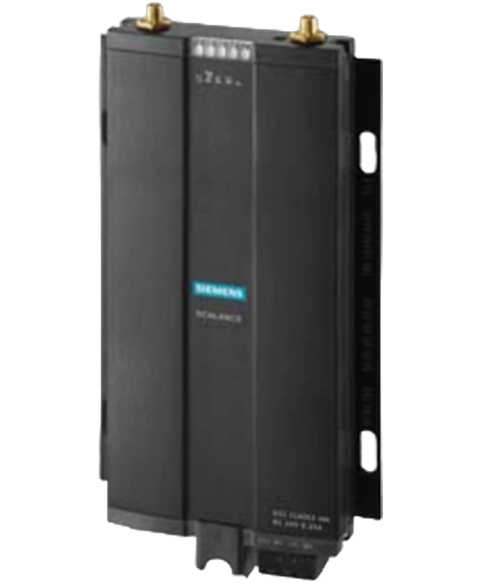

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK5744-1AA30-2AA0
This Siemens 6GK5744-1AA30-2AA0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26805543474.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$3,582.65
(inc. GST)
In Stock
| with WLAN / maximum | 54 Mbit/s |
| for Industrial Ethernet | 10, 100 Mbit/s |
| minimum | 10 Mbit/s |
| maximum | 100 Mbit/s |
| transfer rate / note | Due to the simultaneous use of several radio channels, a transmission rate of 108 Mbit/s is possible (turbo mode) |
| for network components or terminal equipment | 1RJ45 socket |
| for power supply | 14-pole screw terminal, PoE |
| for redundant voltage supply | 1 |
| C-PLUG | Yes |
| KEY-PLUG | No |
| number of radio cards / permanently installed | 1 |
| number of electrical connections / for external antenna(s) | 2 |
| type of electrical connection / for external antenna(s) | R-SMA (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
| type of voltage / of the supply voltage | DC |
| from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af | 48 V |
| at DC / at 24 V / typical | 0.23 A6 W |
| at DC / at 48 V / typical | 0.12 A6 W |
| with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 0.12 A6 W |
| from terminal block | 24 V48 V |
| during operation | -20 ... +60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 90 % |
| ambient condition / for operation | When used under hazardous conditions (Zone 2), the SCALANCE W784-x/xRR or W74x-1 product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of at least IP 54 in compliance with EN 60529. |
| protection class IP | IP30 |
| width / of the enclosure / without antenna | 100 mm |
| height / of the enclosure / without antenna | 205 mm |
| depth / of the enclosure / without antenna | 20 mm |
| net weight | 0.29 kg |
| fastening method | For mounting on 35 mm DIN and S7-300 mounting rail, an additional adapter plate is required |
| S7-1500 rail mounting | No |
| wall mounting | Yes |
| for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz; depending on the country approvals |
| for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz; depending on the country approvals |
| product function / Access Point Mode | No |
| product function / client Mode | Yes |
| dual client | No |
| iHOP | No |
| iPCF client | No |
| iPCF-MC client | No |
| number of iPCF-capable radio modules | 0 |
| number of manageable IP addresses / in client | 1 |
| CLI | Yes |
| web-based management | Yes |
| MIB support | Yes |
| TRAPs via email | Yes |
| configuration with STEP 7 | No |
| configuration with STEP 7 in the TIA Portal | No |
| operation with IWLAN controller | No |
| operation with Enterasys WLAN controller | No |
| iQoS | No |
| forced roaming with IWLAN | No |
| WDS | No |
| Address Resolution Protocol (ARP) | Yes |
| ICMP | Yes |
| Telnet | Yes |
| HTTP | Yes |
| HTTPS | Yes |
| TFTP | Yes |
| DCP | Yes |
| LLDP | No |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| PROFINET IO diagnosis | No |
| link check | No |
| connection monitoring IP-Alive | No |
| localization via Aeroscout | No |
| SysLog | Yes |
| SNMP v1 | Yes |
| SNMP v2 | Yes |
| SNMP v3 | Yes |
| function VLAN with IWLAN | No |
| DHCP client | Yes |
| DHCP server | No |
| ACL - MAC-based | No |
| management security, ACL-IP based | No |
| IEEE 802.1x (radius) | Yes |
| NAT/NAPT | No |
| access protection according to IEEE802.11i | Yes |
| WPA/WPA2 | Yes |
| TKIP/AES | Yes |
| SSH | Yes |
| SNTP | Yes |
| SIMATIC time synchronization (SIMATIC Time) | No |
| for FM | FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4 |
| for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
| EC Declaration of Conformity | Yes |
| CE marking | Yes |
| C-Tick | Yes |
| E1 approval | Yes |
| railway application in accordance with EN 50155 | Yes |
| NEMA4X | No |
| Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af | Yes |
| IEEE 802.11a | Yes |
| IEEE 802.11b | Yes |
| IEEE 802.11e | Yes |
| IEEE 802.11g | Yes |
| IEEE 802.11h | Yes |
| IEEE 802.11i | Yes |
| IEEE 802.11n | No |
| wireless approval | You will find the current list of countries at: www.siemens.de/funkzulassungen |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | Yes |
| Det Norske Veritas (DNV) | No |
| Germanische Lloyd (GL) | Yes |
| Korean Register of Shipping (KRS) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (NK) | Yes |
| Polski Rejestr Statkow (PRS) | Yes |
| standard / for hazardous zone | EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X (only approved in combination with an enclosure with degree of protection of at least IP 54) |
| accessories | 24 V DC screw terminal included in scope of delivery |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to the website: IWLAN | http://www.siemens.com/iwlan |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
