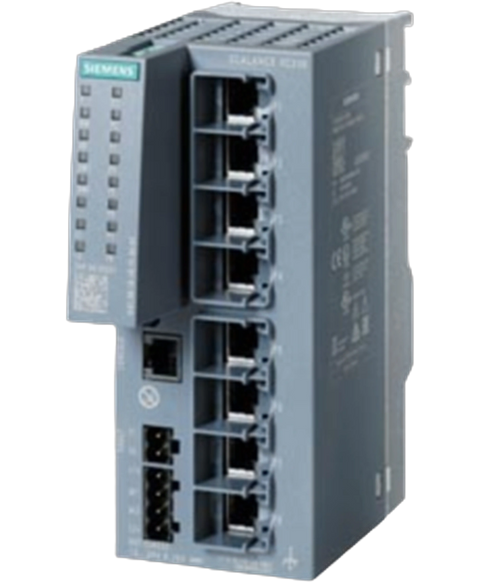

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK5208-0BA00-2AC2
Siemens 6GK5208-0BA00-2AC2 SCALANCE XC208 managed Ethernet switch, 8x RJ45, 10,100Mbps.
This Siemens 6GK5208-0BA00-2AC2 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26801820523.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$955.65
(inc. GST)
In Stock
| product brand name | SCALANCE |
| product type designation | XC208 |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5208-0BA00-2AC2 |
| transfer rate | 10, 100 Mbit/s |
| for network components or terminal equipment | 8; RJ45 |
| with securing collar | 8 |
| for operator console | 1RJ11 |
| for signaling contact | 12-pole terminal block |
| for power supply | 14-pole terminal block |
| C-PLUG | Yes |
| at DC / rated value | 24 V |
| at DC / maximum | 0.1 A |
| product component / connection for redundant voltage supply | Yes |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 4.2 W |
| consumed current / 1 / at rated supply voltage / maximum | 0.175 A |
| supply voltage / 1 / voltage range | 9.6 ... 31.2 |
| consumed current / 1 / maximum | 0.35 A |
| type of electrical connection / 1 / for power supply | 4-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 2,5 A / 125 V |
| during operation | -40 ... +70 °C109 kg |
| during storage | -40 ... +85 °C |
| during transport | -40 ... +85 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| design | compact |
| width | 60 mm |
| height | 147 mm |
| depth | 125 mm |
| net weight | 0.52 kg |
| material / of the enclosure | Polycarbonate (PC-GF10) / pressure die cast aluminum |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
| S7-300 rail mounting | Yes |
| S7-1500 rail mounting | Yes |
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
| cascading in cases of star topology | any (depending only on signal propagation time) |
| QoS according to DSCP | Yes |
| Cut Through switching method | No |
| Store & Forward switching method | Yes |
| CLI | Yes |
| web-based management | Yes |
| MIB support | Yes |
| TRAPs via email | Yes |
| configuration with STEP 7 | Yes |
| RMON | Yes |
| SMTP server | No |
| port mirroring | Yes |
| multiport mirroring | Yes |
| CoS | Yes |
| PROFINET IO diagnosis | Yes |
| switch-managed | Yes |
| PROFINET conformity class | B |
| telegram length / for Ethernet / maximum | 1632 byte |
| Telnet | Yes |
| HTTP | Yes |
| HTTPS | Yes |
| TFTP | Yes |
| SFTP | Yes |
| BOOTP | No |
| GMRP | Yes |
| DCP | Yes |
| LLDP | Yes |
| EtherNet/IP | Yes |
| SNMP v1 | Yes |
| SNMP v2 | Yes |
| SNMP v3 | Yes |
| IGMP (snooping/querier) | Yes |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| port diagnostics | Yes |
| statistics Packet Size | Yes |
| statistics packet type | Yes |
| error statistics | Yes |
| SysLog | Yes |
| VLAN - port based | Yes |
| VLAN - protocol-based | No |
| VLAN - IP-based | No |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
| DHCP server | Yes |
| DHCP client | Yes |
| DHCP Option 82 | Yes |
| DHCP Option 66 | Yes |
| DHCP Option 67 | Yes |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| media redundancy protocol (MRP) with redundancy manager | Yes |
| Media Redundancy Protocol Interconnection (MRP-I) | Yes |
| of the PROFINET IO device / is supported / H-Sync forwarding | Yes |
| of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| ring redundancy | Yes |
| high speed redundancy protocol (HRP) with redundancy manager | Yes |
| high speed redundancy protocol (HRP) with standby redundancy | Yes |
| redundancy procedure STP | Yes |
| redundancy procedure RSTP | Yes |
| redundancy procedure RSTP+ | Yes |
| redundancy procedure MSTP | Yes |
| Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| passive listening | Yes |
| LACP | Yes |
| product function / configuration in RUN via CiR/H-CiR | Yes |
| IEEE 802.1x (radius) | Yes |
| RADIUS client | Yes |
| broadcast/multicast/unicast limiter | Yes |
| broadcast blocking | Yes |
| SSH | Yes |
| SSL | Yes |
| SICLOCK support | Yes |
| NTP-client | Yes |
| SNTP client | Yes |
| NTP | Yes |
| SNTP | Yes |
| CE marking | Yes |
| cULus approval | Yes |
| KC approval | Yes |
| Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| for EMC interference emission | EN 61000-6-4, EN 50121-4 |
| for immunity to EMC | EN 61000-6-2, EN 50121-4 |
| for safety / from CSA and UL | UL 60950-1 E115352 |
| ATEX | Yes |
| UKEX | Yes |
| IECEx | Yes |
| ULhazloc approval | Yes |
| CCC / for hazardous zone according to GB standard | Yes |
| FM registration | Yes |
| railway application in accordance with EN 50121-4 | Yes |
| RoHS conformity | Yes |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
| American Bureau of Shipping Europe Ltd. (ABS) | No |
| French marine classification society (BV) | No |
| Chinese Classification Society (CCS) | No |
| Det Norske Veritas (DNV) | Yes |
| Korean Register of Shipping (KRS) | No |
| Lloyds Register of Shipping (LRS) | No |
| Nippon Kaiji Kyokai (NK) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| Royal Institution of Naval Architects (RINA) | Yes |
| Environmental Product Declaration | Yes |
| total | 135.7 kg |
| during manufacturing | 26.3 kg |
| after end of life | 0.4 kg |
| MTBF | 48 a |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
