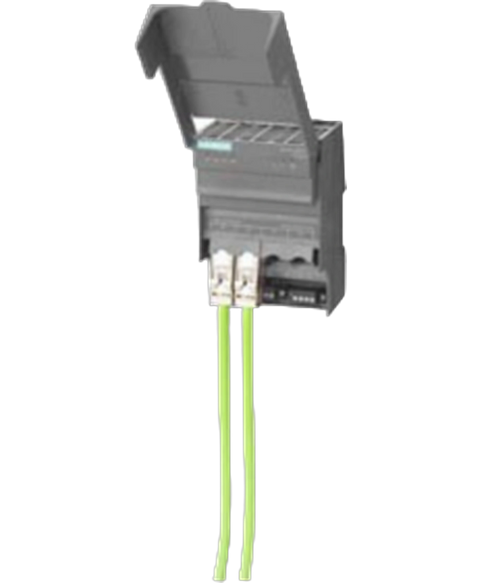

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK5204-0BA00-2AF2
Siemens 6GK5204-0BA00-2AF2 SCALANCE XF204 Ethernet Switch, 4× RJ45 10,100Mbit,s DIN Rail
This Siemens 6GK5204-0BA00-2AF2 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26805633150.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$695.79
(inc. GST)
In Stock
| product brand name | SCALANCE |
| product type designation | XF204 |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5204-0BA00-2AF2 |
| transfer rate | 10, 100 Mbit/s |
| for network components or terminal equipment | 4 |
| for signaling contact | 12-pole terminal block |
| for power supply | 14-pole terminal block |
| C-PLUG | Yes |
| at DC / rated value | 24 V |
| at DC / maximum | 0.1 A |
| product component / connection for redundant voltage supply | Yes |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 2.64 W |
| supply voltage / 1 / voltage range | 18 ... 32 |
| consumed current / 1 / maximum | 0.11 A |
| type of electrical connection / 1 / for power supply | 4-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 1,1 A / 33 V |
| during operation | -40 ... +60 °C82.99 kg |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| note | If the IE-Switch XF-200 is installed horizontally, a maximum ambient temperature of +40 °C is permitted |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| design | flat |
| width | 75 mm |
| height | 125 mm |
| depth | 73 mm |
| net weight | 0.25 kg |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | No |
| S7-300 rail mounting | No |
| S7-1500 rail mounting | No |
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
| cascading in cases of star topology | any (depending only on signal propagation time) |
| CLI | Yes |
| web-based management | Yes |
| MIB support | Yes |
| TRAPs via email | Yes |
| configuration with STEP 7 | Yes |
| port mirroring | Yes |
| multiport mirroring | No |
| with IRT / PROFINET IO switch | No |
| PROFINET IO diagnosis | Yes |
| switch-managed | Yes |
| PROFINET conformity class | B |
| Telnet | Yes |
| HTTP | Yes |
| HTTPS | Yes |
| TFTP | Yes |
| FTP | Yes |
| BOOTP | No |
| DCP | Yes |
| LLDP | Yes |
| SNMP v1 | Yes |
| SNMP v2 | Yes |
| SNMP v3 | Yes |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| port diagnostics | Yes |
| statistics Packet Size | Yes |
| statistics packet type | Yes |
| error statistics | Yes |
| DHCP client | Yes |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| media redundancy protocol (MRP) with redundancy manager | Yes |
| ring redundancy | Yes |
| high speed redundancy protocol (HRP) with redundancy manager | Yes |
| high speed redundancy protocol (HRP) with standby redundancy | No |
| Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| passive listening | Yes |
| SSH | Yes |
| SICLOCK support | Yes |
| NTP | No |
| SNTP | Yes |
| CE marking | Yes |
| cULus approval | Yes |
| KC approval | Yes |
| Regulatory Compliance Mark (RCM) | Yes |
| for EMC interference emission | EN 61000-6-4:2001 (Class A) |
| for immunity to EMC | EN 61000-6-4:2001 |
| for safety / from CSA and UL | UL 60950-1 E115352, CSA C22.2 No. 60950-1 |
| ATEX | Yes |
| UKEX | Yes |
| IECEx | Yes |
| ULhazloc approval | Yes |
| CCC / for hazardous zone according to GB standard | Yes |
| FM registration | Yes |
| railway application in accordance with EN 50155 | No |
| railway application in accordance with EN 50124-1 | No |
| RoHS conformity | Yes |
| Polski Rejestr Statkow (PRS) | Yes |
| Royal Institution of Naval Architects (RINA) | Yes |
| Environmental Product Declaration | Yes |
| total | 100.09 kg |
| during manufacturing | 16.65 kg |
| after end of life | 0.45 kg |
| MTBF | 48.03 a |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
