Product image for illustrative purposes only. Actual item may vary.

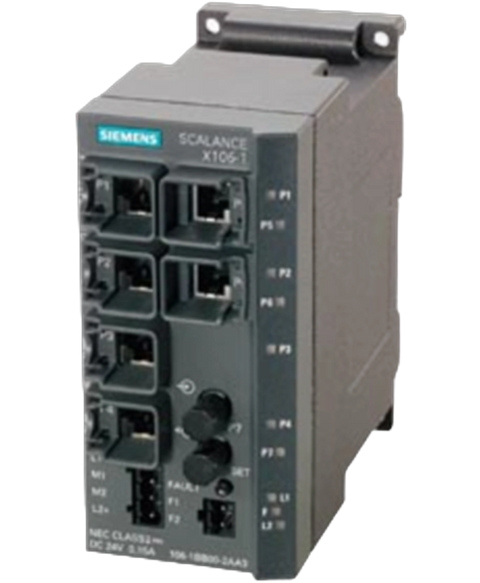

Siemens 6GK5106-1BB00-2AA3
Siemens 6GK51061BB002AA3 SCALANCE X106-1 Ethernet switch, unmanaged, 6-port.
This Siemens 6GK5106-1BB00-2AA3 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26805668477.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,245.33
(inc. GST)
In Stock
| product brand name | SCALANCE |
| product type designation | X106-1 |
| design of the product | 6x 10/100 Mbit/s RJ45, 1x 100 Mbit/s Multimode ST/BFOC |
| transfer rate | 10, 100 Mbit/s |
| for network components or terminal equipment | 6; RJ45 with securing collar |
| for multimode | 10 |
| for signaling contact | 12-pole terminal block |
| for power supply | 14-pole terminal block |
| at DC / rated value | 24 V |
| at DC / maximum | 0.1 A |
| product component / connection for redundant voltage supply | Yes |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 3.6 W |
| consumed current / 1 / maximum | 0.15 A |
| type of electrical connection / 1 / for power supply | 4-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 0,6 A / 60 V |
| during operation | -10 ... +60 °C |
| during storage | -40 ... +80 °C |
| during transport | -40 ... +80 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP30 |
| design | compact |
| width | 60 mm |
| height | 125 mm |
| depth | 124 mm |
| net weight | 0.78 kg |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
| S7-300 rail mounting | Yes |
| S7-1500 rail mounting | No |
| multiport mirroring | No |
| CoS | Yes |
| switch-managed | No |
| Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| CE marking | Yes |
| KC approval | Yes |
| for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | Yes |
| Det Norske Veritas (DNV) | No |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (NK) | Yes |
| Polski Rejestr Statkow (PRS) | Yes |
| Royal Institution of Naval Architects (RINA) | Yes |
| MTBF | 136.65 a |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
