Siemens 6GK50080BA001AB2

SKU: PL27103396407
MPN: 6GK50080BA001AB2

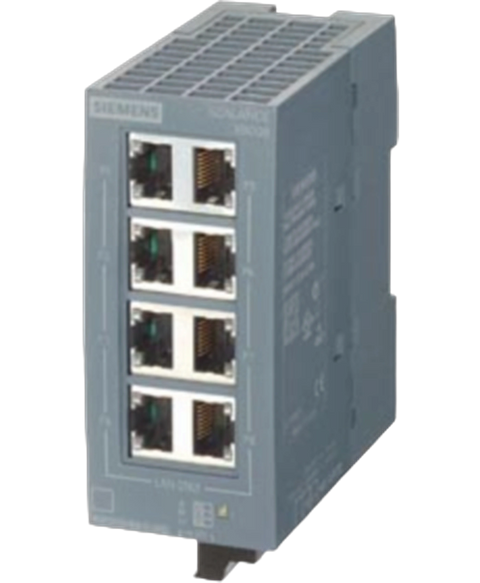

SCALANCE XB008 unmanaged Industrial Ethernet Switch for 10,100 Mbit,s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V DC power supply, with 8x 10,100 Mbit,s Twisted Pair ports with RJ45 sockets

This Siemens 6GK50080BA001AB2 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103396407.

Brand New - 12 Months Warranty
$312.39 (inc. GST)
In Stock

Datasheet

product type designation SCALANCE XB008
transfer rate 10 Mbit/s, 100 Mbit/s
for network components or terminal equipment 8; RJ45
for multimode 0
for power supply 13-pole terminal block
type of voltage / 1 / of the supply voltage DC
supply voltage / 1 / rated value 24 V19.2 ... 28.8 V
power loss [W] / 1 / rated value 2.88 W
consumed current / 1 / maximum 0.12 A
type of electrical connection / 1 / for power supply 3-pole terminal block
product component / 1 / fusing at power supply input Yes
fuse protection type / 1 / at input for supply voltage 0.6 A / 60 V
during operation -10 ... +60 °C
during storage -40 ... +80 °C
during transport -40 ... +80 °C
at 25 °C / without condensation / during operation / maximum 95 %
protection class IP IP20
design Box
width 45 mm
height 100 mm
depth 87 mm
net weight 0.18 kg
35 mm top hat DIN rail mounting Yes
wall mounting Yes
S7-1500 rail mounting No
multiport mirroring No
CoS Yes
product function / switch-managed No
Parallel Redundancy Protocol (PRP)/operation in the PRP-network Yes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) No
for FM FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4
for safety / from CSA and UL UL 60950-1, CSA C22.2 No. 60950-1
for emitted interference EN 61000-6-4 (Class A)
for interference immunity EN 61000-6-2
MTBF 214 a
according to IEC 81346-2 KF
according to IEC 81346-2:2019 KFE
certificate of suitability / CE marking Yes
standard / for hazardous zone EN 60079-0:2009, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X
certificate of suitability EN 61000-6-2, EN 61000-6-4
C-Tick Yes
KC approval Yes
to web page: selection aid TIA Selection Tool http://www.siemens.com/tia-selection-tool
to website: Industrial communication http://www.siemens.com/simatic-net
to website: Industry Mall https://mall.industry.siemens.com
to website: Information and Download Center http://www.siemens.com/industry/infocenter
to website: Image database http://automation.siemens.com/bilddb
to website: CAx-Download-Manager http://www.siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
security information Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4)
