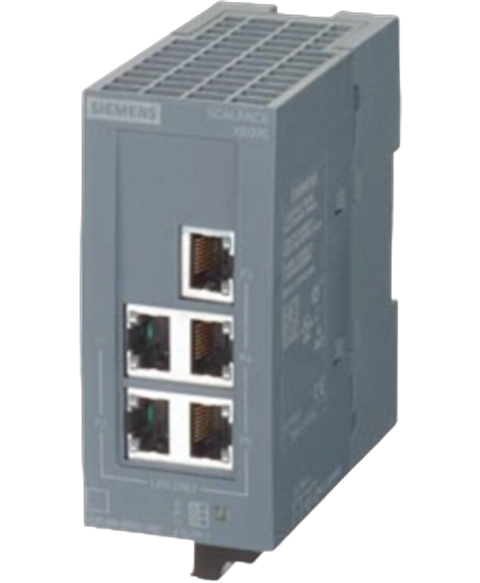

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK5 005-0BA00-1AB2
Siemens SCALANCE XB005 unmanaged Ethernet switch, 5 RJ45 ports, 10,100Mbps, 12VAC,DC.
This Siemens 6GK5 005-0BA00-1AB2 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26801723466.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$255.59
(inc. GST)
In Stock
| product brand name | SCALANCE |
| product type designation | XB005 |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5005-0BA00-1AB2 |
| transfer rate | 10, 100 Mbit/s |
| for network components or terminal equipment | 5; RJ45 |
| for multimode | 0 |
| for power supply | 13-pole terminal block |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 1.68 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.07 A |
| type of electrical connection / 1 / for power supply | 3-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 0,6 A / 60 V |
| type of voltage / 2 / of the supply voltage | AC |
| supply voltage / 2 / voltage range | 19.2 ... 28.8 |
| during operation | -10 ... +60 °C50.38 kg |
| during storage | -40 ... +80 °C |
| during transport | -40 ... +80 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| design | Box |
| width | 45 mm |
| height | 100 mm |
| depth | 87 mm |
| net weight | 0.165 kg |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
| S7-1500 rail mounting | No |
| multiport mirroring | No |
| CoS | Yes |
| switch-managed | No |
| PROFINET conformity class | A |
| Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| CE marking | Yes |
| cULus approval | Yes |
| KC approval | Yes |
| Regulatory Compliance Mark (RCM) | Yes |
| for EMC interference emission | EN 61000-6-4 (Class A) |
| for immunity to EMC | EN 61000-6-2 |
| for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
| ATEX | Yes |
| UKEX | Yes |
| IECEx | Yes |
| ULhazloc approval | Yes |
| CCC / for hazardous zone according to GB standard | Yes |
| FM registration | Yes |
| RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| Environmental Product Declaration | Yes |
| total | 57.94 kg |
| during manufacturing | 7.42 kg |
| after end of life | 0.14 kg |
| MTBF | 241 a |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
