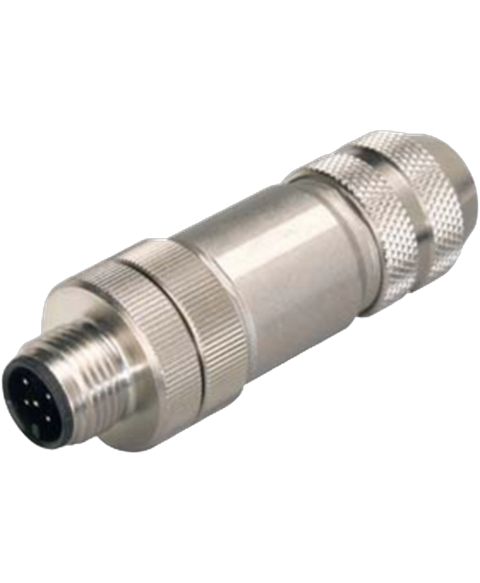

Siemens 6GK1905-0EA00
Siemens' 6GK1905-0EA00 is a 5-pole Profibus M12 connector, designed for reliable connections. It features a maximum data transfer rate of 12 Mbps and is suitable for use with ET 200 systems.
This Siemens 6GK1905-0EA00 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26805525210.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Technical Product Detail Page | https://i.siemens.com/1P6GK1905-0EA00 |
| suitability for use | For connecting electrical PB bus cables to ET200 |
| transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
| for PROFIBUS cables | 1Integrated screw-type contacts for 2-core PB installation cables |
| for network components or terminal equipment | 1M12 connector (male insert, 4-pin, B-coded) |
| type of electrical connection / FastConnect | No |
| material / of the enclosure | metal |
| locking mechanism design | Screwed joint |
| tightening torque / for M12 round connector / maximum | 0.6 N·m |
| connector coding / of the M12 circular connector | B |
| type of cable outlet | 180° cable outlet |
| width | 19 mm |
| height | 19 mm |
| depth | 73 mm |
| net weight | 40 g |
| connectable cable cross-section | 6 ... 8 mm |
| connectable conductor cross-section | 0.33 mm² |
| during operation | -40 ... +70 °C |
| during storage | -40 ... +80 °C |
| during transport | -40 ... +80 °C |
| to water | resistant |
| protection class IP | IP65/67 |
| silicon-free | Yes |
| strain relief | Yes |
| RoHS conformity | Yes |
| UL approval | No |
| railway application in accordance with EN 50155 | No |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
