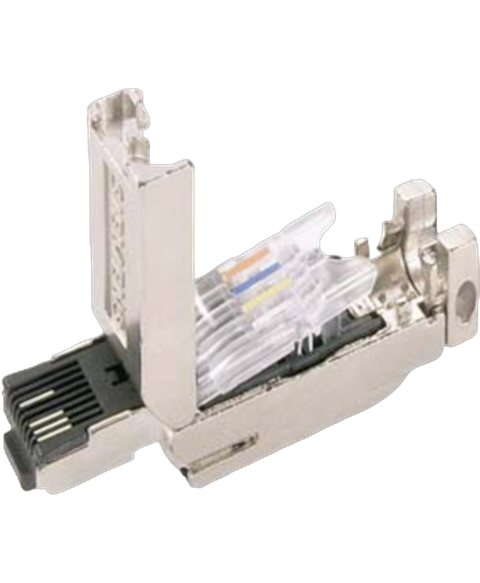

Siemens 6GK1901-1BB10-2AA0
The Siemens 6GK1901-1BB10-2AA0 is an RJ45 plug designed for versatile networking applications. It features a transfer rate capability ranging from 10 to 100 Mbit,s and accommodates up to four Ethernet connections, enhancing connectivity for various components.
This Siemens 6GK1901-1BB10-2AA0 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26801425329.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Technical Product Detail Page | https://i.siemens.com/1P6GK1901-1BB10-2AA0 |
| suitability for use | For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system |
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s |
| for Industrial Ethernet FC TP cables | 4integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22 |
| for network components or terminal equipment | 1RJ45 connector |
| type of electrical connection / FastConnect | Yes |
| material / of the enclosure | metal |
| number of reuses | 10 |
| locking mechanism design | other |
| type of cable outlet | 180° cable outlet |
| width | 13.7 mm |
| height | 16 mm |
| depth | 55 mm |
| net weight | 35 g |
| connectable cable cross-section | 6.5 ... 6.5 mm |
| connectable conductor cross-section | 0.33 mm² |
| during operation | -40 ... +85 °C0.0086 kg |
| during storage | -40 ... +85 °C |
| during transport | -40 ... +85 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| PoE capability | Yes |
| PoE+ capability | Yes |
| silicon-free | Yes |
| strain relief | Yes |
| RoHS conformity | Yes |
| UL approval | Yes |
| cULus approval | Yes |
| railway application in accordance with EN 50155 | No |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| standard for structured cabling | Cat5 |
| Environmental Product Declaration | Yes |
| total | 0.277 kg |
| during manufacturing | 0.263 kg |
| after end of life | 0.0062 kg |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
