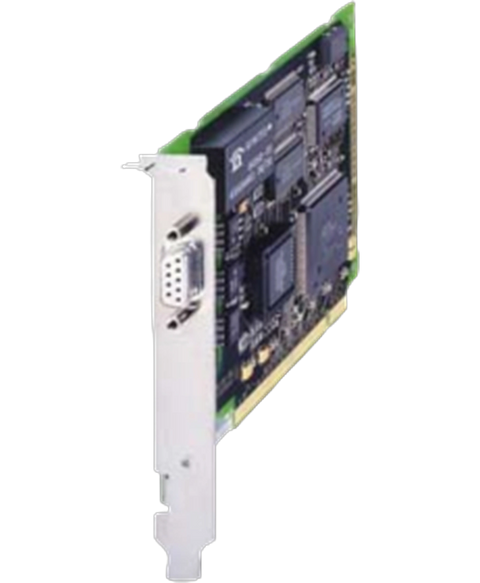

Siemens 6GK15611AA01
Communications processor CP 5611 A2 PCI card (32 bit; 3.3,5 V; 33,66MHz) to Connection of a PG or PC with PCI Bus to PROFIBUS or MPI (no Windows) 9x support!) currently Only 32-bit support with SIMATIC NET V8.2 Software
This Siemens 6GK15611AA01 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103385677.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| at the 1st interface / according to PROFIBUS | 9.6 kbit/s ... 12 Mbit/s19-pin Sub-D socket (RS 485) |
| of the backplane bus | PCI (32Bit 3,3V/5V UniversalKey 33/66MHz) |
| type of voltage / of the supply voltage | DC |
| 1 / from backplane bus | 5 V |
| at 5 V | 5 % |
| 1 / from backplane bus / at DC / maximum | 0.5 A |
| power loss [W] | 2.5 W |
| during operation | 5 ... 55 °C |
| during storage | -20 ... +60 °C |
| during transport | -20 ... +60 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP00 |
| module format | PCI |
| width | 18 mm |
| height | 102 mm |
| depth | 130 mm |
| net weight | 100 g |
| number of plug-in cards of same design / plug-in / per PC station | 1 |
| number of units / note | - |
| software / for open communication / by means of SEND/RECEIVE / required | Yes, SOFTNET-PB DP / SOFTNET-PB DP Slave / SOFTNET-PB S7 |
| number of possible connections / for open communication / by means of SEND/RECEIVE / maximum | 50 |
| software / for DP master function / required | Yes, SOFTNET-PB DP |
| DPV0 | Yes |
| DPV1 | YesNo |
| DPV2 | No |
| number of DP slaves / on DP master / operable | 64 |
| of the address range of the inputs / as DP master / total | 14640 byte |
| of the address range of the outputs / as DP master / total | 14640 byte |
| of the address range of the inputs / per DP slave | 244 byte |
| of the address range of the outputs / per DP slave | 244 byte |
| of the address range of the diagnostic data / per DP slave | 244 byte |
| software / for DP slave function / required | Yes, SOFTNET-PB DP slave |
| of the address range of the inputs / as DP slave / total | 122 byte |
| of the address range of the outputs / as DP slave / total | 122 byte |
| software / for S7 communication / required | Yes, SOFTNET-PB S7 |
| number of possible connections / for S7/PG communication / maximum | 8 |
| number of configurable connections / per PC station | 207 |
| configuration software / required | Included in the scope of delivery of the required software product |
| port diagnostics | Yes |
| accessories | optional: MPI cable |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
