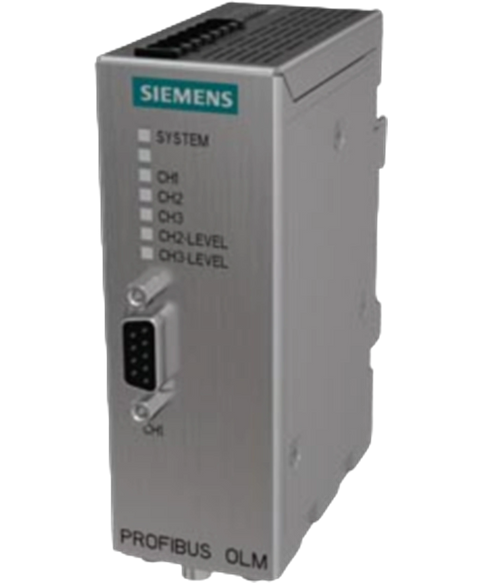

Product image for illustrative purposes only. Actual item may vary.
Siemens 6GK15032CC00
PROFIBUS OLM,G11-1300V4.0 optical link module with 1 RS485 and 1 glass FOC interface (2 BFOC- sockets), 1300 Nm shaft Length for large distances with signaling contact and test port
This Siemens 6GK15032CC00 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103370852.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,257.79
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6GK1503-2CC00 |
| transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
| transfer rate / with PROFIBUS PA | 45.45 kbit/s |
| number of electrical/optical connections / for network components or terminal equipment / maximum | 2 |
| for network components or terminal equipment | 19-pin Sub-D socket |
| for measuring device | 12-pole terminal block |
| for signaling contact | 1 |
| for power supply | 1 |
| for redundant voltage supply | 1 |
| for power supply and signaling contact | 5-pole terminal block |
| number of optical interfaces / for fiber optic cable | 1 |
| design of the optical interface / for fiber optic cable | BFOC port |
| for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum | 8 dB15 km |
| propagation delay [bit] | 6.5 bit |
| for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km | -19 dB-29 dB |
| wavelength / of the optical interface / note | 1310 nm, single-mode |
| operating voltage / of the signaling contacts / at DC / rated value | 24 V |
| operational current / of the signaling contacts / at DC / maximum | 0.1 A |
| type of voltage / of the supply voltage | DC |
| supply voltage / at DC / rated value | 24 V |
| supply voltage / at DC | 18.8 ... 28.8 V |
| product component / fusing at power supply input | Yes |
| consumed current / at DC / at 24 V / maximum | 0.2 A |
| during operation | 0 ... 60 °C150.26 kg |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP40 |
| design | compact |
| width | 39.5 mm |
| height | 112 mm |
| depth | 74.5 mm |
| net weight | 340 g |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
| product function / ring redundancy | Yes |
| for safety / from CSA and UL | UL 60950-1, CSA C22.2 Nr. 60950-1 |
| for emitted interference | EN 61000-6-4 (Class A) |
| for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2, EN 61000-6-4 |
| CE marking | Yes |
| C-Tick | Yes |
| American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| French marine classification society (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Germanische Lloyd (GL) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (NK) | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
| certificate of suitability / CCC / for hazardous zone according to GB standard | No |
| Environmental Product Declaration | Yes |
| total | 165.41 kg |
| during manufacturing | 15.09 kg |
| after end of life | 0.06 kg |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://siemens.com/industrial-communication |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
