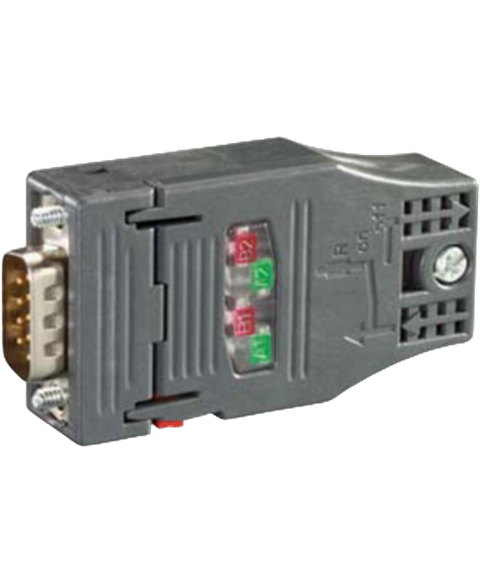

Siemens 6GK1500-0FC10
The Siemens 6GK1500-0FC10 is a PROFIBUS FC designed for industrial communication applications. This unit supports a data rate of 9.6 kbit and features an axial cable outlet positioned at 180 degrees.
This Siemens 6GK1500-0FC10 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL26801728478.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Technical Product Detail Page | https://i.siemens.com/1P6GK1500-0FC10 |
| suitability for use | For connecting PROFIBUS nodes to the PROFIBUS bus cable |
| transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
| for PROFIBUS cables | 2Integrated insulation displacement terminals for 2-core PB FC installation cables |
| for network components or terminal equipment | 1Sub-D connector (9-pin) |
| type of electrical connection / FastConnect | Yes |
| design of terminating resistor | Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated. |
| material / of the enclosure | plastic |
| locking mechanism design | Screwed joint |
| type of cable outlet | 180° cable outlet |
| width | 16 mm |
| height | 62 mm |
| depth | 34.5 mm |
| net weight | 40 g |
| during operation | -40 ... +70 °C0.24 kg |
| during storage | -25 ... +80 °C |
| during transport | -25 ... +80 °C |
| at 25 °C / without condensation / during operation / maximum | 75 % |
| protection class IP | IP20 |
| silicon-free | Yes |
| PG connection socket | No |
| strain relief | Yes |
| RoHS conformity | Yes |
| UL approval | Yes |
| cULus approval | Yes |
| railway application in accordance with EN 50155 | No |
| Environmental Product Declaration | Yes |
| total | 0.73 kg |
| during manufacturing | 0.44 kg |
| after end of life | 0.05 kg |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
