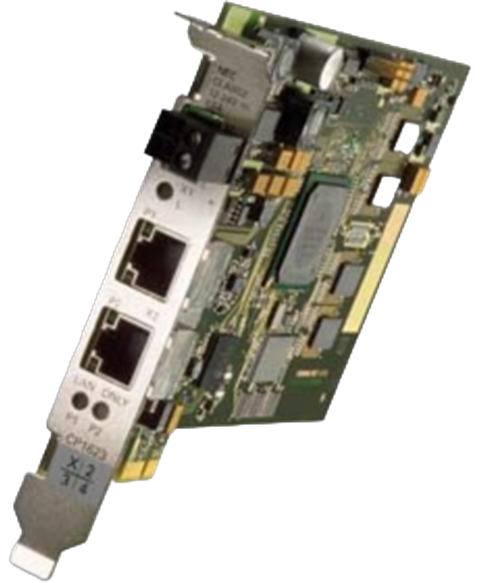

Siemens 6GK11623AA00
COMMUNICATION Processor CP 1623 PCI EXPRESS X1 (3.3V,12V) FOR CONNECTING with IND.ETHERNET(10,100,1000MBIT,S) with 2-PORT-SWITCH(RJ45) VIA HARDNET-IE S73 and S7-REDCONNECT SUPPORT FOR OPERATING System SEE Simatic NET SW ENABLED FOR Simatic NET CD V7.0 HF1 OR HIGHER
This Siemens 6GK11623AA00 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet range and is referenced internally as PartLogic SKU PL27103364610.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,291.87
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6GK1162-3AA00 |
| transfer rate | 10, 100, 1000 Mbit/s |
| at the 1st interface / according to Industrial Ethernet | 2RJ45 port |
| for power supply | 12-pole terminal block |
| of the backplane bus | PCI Express x1 |
| type of voltage / of the supply voltage | DC |
| type of voltage supply / optional external power supply | Yes |
| 1 / from backplane bus | 3.3 V |
| 2 / from backplane bus | 12 V |
| external | 24 V10.5 ... 32 V |
| at 3.3 V | 9 % |
| at 5 V | 5 % |
| at 12 V | 8 % |
| at 24 V | 33 % |
| 1 / from backplane bus / at DC / maximum | 0.85 A |
| 2 / from backplane bus / at DC / maximum | 0.4 A |
| from external supply voltage / at DC / at 12 V / maximum | 0.55 A |
| from external supply voltage / at DC / at 24 V / maximum | 0.3 A |
| power loss [W] | 7.6 W |
| power loss [W] / in switch mode / maximum | 7.2 W |
| during operation | 5 ... 55 °C207.1 kg |
| during storage | -20 ... +60 °C |
| during transport | -20 ... +60 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP00 |
| module format | PCI Express x1 (half length) |
| width | 18 mm |
| height | 111 mm |
| depth | 167 mm |
| net weight | 124 g |
| number of plug-in cards of same design / plug-in / per PC station | 4 |
| number of units / note | - |
| software / for open communication / by means of SEND/RECEIVE / required | Yes, HARDNET-IE S7 (S7-1613) |
| number of possible connections / for open communication / by means of SEND/RECEIVE / maximum | 120 |
| software / for S7 communication / required | Yes, HARDNET-IE S7 (S7-1613) |
| number of possible connections / for S7/PG communication / maximum | 120 |
| number of possible connections / for optimized S7 communication / maximum | 40 |
| number of active connections / with multi-protocol mode | 120 |
| number of configurable connections / per PC station | 207 |
| software / for PROFINET CBA communication / required | Yes, PN CBA OPC server |
| number of remote connection partners / with PROFINET CBA | 228 |
| number of connections / with PROFINET CBA / total | 10000 |
| product function / MIB support | Yes |
| SNMP v1 | Yes |
| SNMP v3 | No |
| DCP | Yes |
| LLDP | No |
| configuration software / required | Included in the scope of delivery of the required software product |
| configuration software / for PROFINET CBA / required | Yes, SIMATIC iMAP |
| I&M0 - device-specific information | Yes |
| I&M1 - higher level designation/location designation | Yes |
| I&M2 - installation date | No |
| I&M3 - comment | No |
| I&M4 - signature | No |
| I&M4 - OEM data | No |
| product feature / switch | Yes |
| product function / switch-managed | No |
| product function / with IRT / PROFINET IO switch | No |
| software / for redundancy function / required | Yes, HARDNET-IE S7-REDCONNECT for communication with SIMATIC S7 H systems |
| product function / SICLOCK support | Yes |
| protocol / is supported / NTP | No |
| Environmental Product Declaration | Yes |
| total | 240.36 kg |
| during manufacturing | 33.2 kg |
| after end of life | 0.06 kg |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
