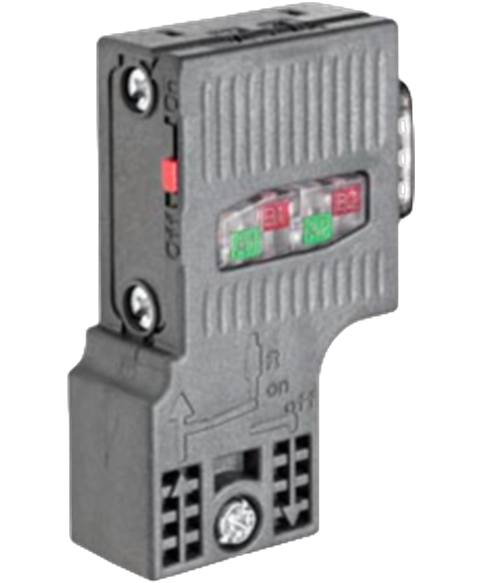

Siemens 6ES7972-0BA52-0XA0
The Siemens 6ES7972-0BA52-0XA0 is a connection plug designed for efficient integration in industrial applications. It features a Sub-D 9-pin male connector and accommodates data rates of up to 12 Mbit,s.
This Siemens 6ES7972-0BA52-0XA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Accessories range and is referenced internally as PartLogic SKU PL26801445486.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Technical Product Detail Page | https://i.siemens.com/1P6ES7972-0BA52-0XA0 |
| suitability for use | for connecting PROFIBUS stations to the PROFIBUS bus cable |
| transfer rate / with PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s |
| for PROFIBUS cables | 2Integrated insulation displacement terminals for 2-core PB FC installation cables |
| for network components or terminal equipment | 19-pin sub D connector |
| type of electrical connection / FastConnect | Yes |
| design of terminating resistor | Resistor combination integrated and connectable via slide switch |
| material / of the enclosure | plastic |
| locking mechanism design | Screwed joint |
| type of cable outlet | 90 degree cable outlet |
| width | 15.8 mm |
| height | 59 mm |
| depth | 35.6 mm |
| net weight | 36 g |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| protection class IP | IP20 |
| silicon-free | Yes |
| PG connection socket | No |
| strain relief | Yes |
| RoHS conformity | Yes |
| UL approval | Yes |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to website: Industrial communication | https://www.siemens.com/simatic-net |
| to web page: SiePortal | https://sieportal.siemens.com |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
