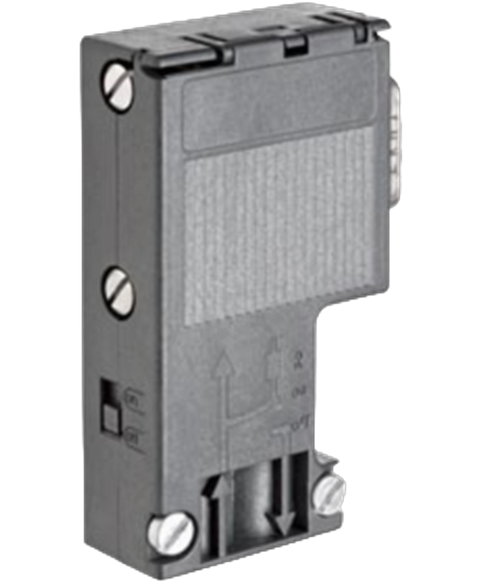

Siemens 6ES7972-0BA12-0XA0
The Siemens 6ES7972-0BA12-0XA0 is a PROFIBUS connection plug designed for robust communication in industrial settings. This unit features a plastic enclosure and ensures excellent performance with a transfer rate of up to 12 Mbit,s.
This Siemens 6ES7972-0BA12-0XA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Accessories range and is referenced internally as PartLogic SKU PL26801717976.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Technical Product Detail Page | https://i.siemens.com/1P6ES7972-0BA12-0XA0 |
| suitability for use | for connecting PROFIBUS stations to the PROFIBUS bus cable |
| transfer rate / with PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s |
| for PROFIBUS cables | 2Screw |
| for network components or terminal equipment | 19-pin sub D connector |
| type of electrical connection / FastConnect | No |
| design of terminating resistor | Resistor combination integrated and connectable via slide switch |
| material / of the enclosure | plastic |
| locking mechanism design | Screwed joint |
| type of cable outlet | 90 degree cable outlet |
| width | 15.8 mm |
| height | 64 mm |
| depth | 35.6 mm |
| net weight | 36 g |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| protection class IP | IP20 |
| silicon-free | Yes |
| PG connection socket | No |
| strain relief | Yes |
| RoHS conformity | Yes |
| UL approval | Yes |
