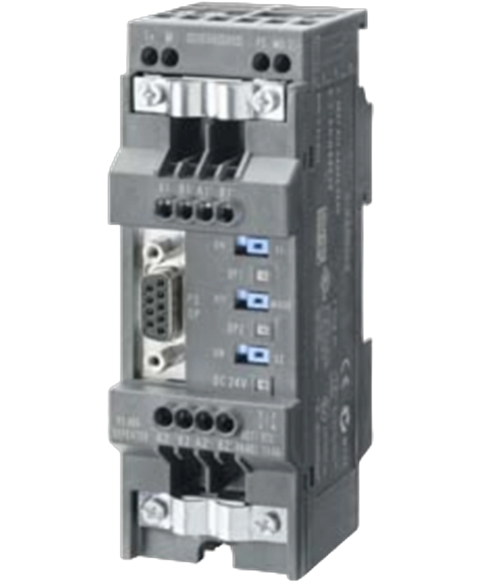

Siemens 6ES7972-0AA02-0XA0
The Siemens 6ES7972-0AA02-0XA0 is an RS485 repeater module within the SIMATIC series. It facilitates communication via the PROFIBUS and MPI bus systems, enabling seamless connectivity across your network.
This Siemens 6ES7972-0AA02-0XA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Accessories range and is referenced internally as PartLogic SKU PL26801733641.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption, max. | 100 mA; 100 mA without loads at PG/OP socket; 130 mA load at PG/OP socket (5 V/90 mA); 200 mA load at PG/OP socket (24 V/100 mA) |
| Power loss, typ. | 0.7 W |
| Transmission rate, max. | 12 Mbit/s; 9.6 kbit/s to 12 Mbit/s |
| IP degree of protection | IP20 |
| min. | 0 °C-40 °C |
| max. | 60 °C70 °C |
| Operation, max. | 95 %; at 25 °C |
| Design of electrical connection for supply voltage | Terminal module |
| Design of electrical connection for PROFIBUS cables | 2 terminal blocks |
| Width | 45 mm |
| Height | 128 mm |
| Depth | 59.3 mm |
| Weight, approx. | 350 g |
