Siemens 6ES7541-1AB00-0AB0

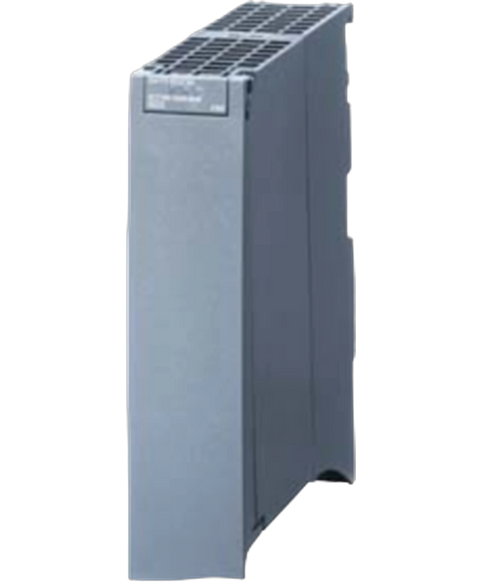

Siemens 6ES7541-1AB00-0AB0 S7-1500 communication module, RS422,485.
This Siemens 6ES7541-1AB00-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801433231.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | CM PtP RS 422 / 485 HF |
| I&M data | Yes; I&M 0 |
| Fast startup | Yes |
| STEP 7 TIA Portal configurable/integrated from version | V12 / V12 |
| STEP 7 configurable/integrated from version | V5.5 SP2 with GSD file |
| PROFIBUS from GSD version/GSD revision | - / - |
| PROFINET from GSD version/GSD revision | V2.3 / - |
| Rail mounting | Yes; S7-1500 mounting rail |
| Design of the power supply | system power supply |
| Current consumption (rated value) | 43 mA; From the backplane bus |
| Power consumption from the backplane bus | 0.65 W |
| Power loss, typ. | 0.6 W |
| Inputs | 8 byte |
| Transmission rate, max. | 115.2 kbit/s |
| Cable length, max. | 1 200 m |
| 4-wire full duplex connection | Yes |
| 4-wire multipoint connection | No |
| — Telegram length, max. | 4 kbyte |
| — Bits per character | 7 or 8 |
| — Number of stop bits | 1 or 2 bit |
| — Parity | None, even, odd, always 1, always 0, any |
| — Address area | 1 to 247, extended 1 to 65535 |
| — max. number of devices | 32 |
| Buffer memory for telegrams | 8 kbyte |
| Number of telegrams which can be buffered | 255 |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Hardware interrupt | No |
| Wire-break | Yes |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| Receive RxD | Yes; Yellow LED |
| Transmit TxD | Yes; Yellow LED |
| between backplane bus and interface | Yes |
| Isolation tested with | 707 V DC (type test) |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 40 °C |
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200MP system manual |
| to SIMATIC S7-300 | Yes |
| to SIMATIC S7-400 | Yes |
| to SIMATIC S7-1500 | Yes |
| to standard PROFINET controller | Yes |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 127 mm |
| Weight, approx. | 0.22 kg |
