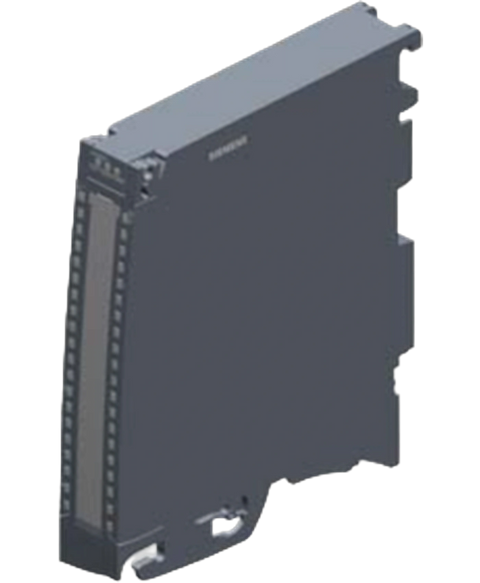

Siemens Analog I,O Module, AI 4×U,I,R,RTD,TC ST + AQ 2×U,I ST, Push-in, SIMATIC S7-1500 (6ES7534-7QE00-0AB0)

This Siemens 6ES7534-7QE00-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805322045.

Brand New - 12 Months Warranty
$1,013.87 (inc. GST)
In Stock

Datasheet

Product type designation AI 4xU/I/RTD/TC /AQ 2xU/I ST
HW functional status from FS01
Firmware version V1.0.0
FW update possible Yes
I&M data Yes; I&M0 to I&M3
Isochronous mode No
Prioritized startup No
Measuring range scalable No
Scalable measured values No
Adjustment of measuring range No
Output range scalable No
STEP 7 TIA Portal configurable/integrated from version V13 / V13.0.2
STEP 7 configurable/integrated from version V5.5 SP3 / -
PROFIBUS from GSD version/GSD revision V1.0 / V5.1
PROFINET from GSD version/GSD revision V2.3 / -
Oversampling No
MSI Yes
MSO Yes
Reparameterization possible in RUN Yes
Calibration possible in RUN Yes
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Current consumption, max. 200 mA
Short-circuit protection Yes
Output current, max. 20 mA; Max. 47 mA per channel for a duration < 10 s
Power consumption from the backplane bus 0.7 W
Power loss, typ. 3.3 W
Number of analog inputs 4
For current measurement 4
For voltage measurement 4
For resistance/resistance thermometer measurement 2
For thermocouple measurement 4
permissible input voltage for voltage input (destruction limit), max. 28.8 V
permissible input current for current input (destruction limit), max. 40 mA
Constant measurement current for resistance-type transmitter, typ. 150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 1.25 mA; 6 000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000: 0.625 mA; PTC: 0.472 mA
Technical unit for temperature measurement adjustable Yes; °C/°F/K
Analog input with oversampling No
Standardization of measured values No
0 to +5 V No
0 to +10 V No
1 V to 5 V Yes
— Input resistance (1 V to 5 V) 100 kΩ
-1 V to +1 V Yes
— Input resistance (-1 V to +1 V) 10 MΩ
-10 V to +10 V Yes
— Input resistance (-10 V to +10 V) 100 kΩ
-2.5 V to +2.5 V Yes
— Input resistance (-2.5 V to +2.5 V) 10 MΩ
-25 mV to +25 mV No
-250 mV to +250 mV Yes
— Input resistance (-250 mV to +250 mV) 10 MΩ
-5 V to +5 V YesNo
— Input resistance (-5 V to +5 V) 100 kΩ
-50 mV to +50 mV Yes
— Input resistance (-50 mV to +50 mV) 10 MΩ
-500 mV to +500 mV Yes
— Input resistance (-500 mV to +500 mV) 10 MΩ
-80 mV to +80 mV Yes
— Input resistance (-80 mV to +80 mV) 10 MΩ
0 to 20 mA Yes
— Input resistance (0 to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
-20 mA to +20 mA Yes
— Input resistance (-20 mA to +20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
4 mA to 20 mA Yes
— Input resistance (4 mA to 20 mA) 25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC
Type B Yes
— Input resistance (Type B) 10 MΩ
Type C No
Type E Yes
— Input resistance (Type E) 10 MΩ
Type J Yes
— Input resistance (type J) 10 MΩ
Type K Yes
— Input resistance (Type K) 10 MΩ
Type L No
Type N Yes
— Input resistance (Type N) 10 MΩ
Type R Yes
— Input resistance (Type R) 10 MΩ
Type S Yes
— Input resistance (Type S) 10 MΩ
Type T Yes
— Input resistance (Type T) 10 MΩ
Type U No
Type TXK/TXK(L) to GOST No
Cu 10 No
Cu 10 according to GOST No
Cu 50 No
Cu 50 according to GOST No
Cu 100 No
Cu 100 according to GOST No
Ni 10 No
Ni 10 according to GOST No
Ni 100 Yes; Standard/climate
— Input resistance (Ni 100) 10 MΩ
Ni 100 according to GOST No
Ni 1000 Yes; Standard/climate
— Input resistance (Ni 1000) 10 MΩ
Ni 1000 according to GOST No
LG-Ni 1000 Yes; Standard/climate
— Input resistance (LG-Ni 1000) 10 MΩ
Ni 120 No
Ni 120 according to GOST No
Ni 200 No
Ni 200 according to GOST No
Ni 500 No
Ni 500 according to GOST No
Pt 10 No
Pt 10 according to GOST No
Pt 50 No
Pt 50 according to GOST No
Pt 100 Yes; Standard/climate
— Input resistance (Pt 100) 10 MΩ
Pt 100 according to GOST No
Pt 1000 Yes; Standard/climate
— Input resistance (Pt 1000) 10 MΩ
Pt 1000 according to GOST No
Pt 200 Yes; Standard/climate
— Input resistance (Pt 200) 10 MΩ
Pt 200 according to GOST No
Pt 500 Yes; Standard/climate
— Input resistance (Pt 500) 10 MΩ
Pt 500 according to GOST No
0 to 150 ohms Yes
— Input resistance (0 to 150 ohms) 10 MΩ
0 to 300 ohms Yes
— Input resistance (0 to 300 ohms) 10 MΩ
0 to 600 ohms Yes
— Input resistance (0 to 600 ohms) 10 MΩ
0 to 3000 ohms No
0 to 6000 ohms Yes
— Input resistance (0 to 6000 ohms) 10 MΩ
PTC Yes
— Input resistance (PTC) 10 MΩ
— parameterizable Yes
— internal temperature compensation Yes
— external temperature compensation via RTD Yes
— Compensation for 0 °C reference point temperature Yes; fixed value can be set
— Reference channel of the module No
shielded, max. 800 m; for U/I, 200 m for R/RTD, 50 m for TC800 m; for current, 200 m for voltage
Number of analog outputs 2
Voltage output, short-circuit protection Yes
Voltage output, short-circuit current, max. 24 mA
Current output, no-load voltage, max. 22 V
Cycle time (all channels), min. 3.2 ms; ±0.5 ms, regardless of the number of activated channels
0 to 10 V Yes
for voltage output two-wire connection Yes
for voltage output four-wire connection Yes
for current output two-wire connection Yes
with voltage outputs, min. 1 kΩ; 0.5 kOhm at 1 to 5 V
with voltage outputs, capacitive load, max. 1 µF
with current outputs, max. 750 Ω
with current outputs, inductive load, max. 10 mH
Resolution with overrange (bit including sign), max. 16 bit
Integration time, parameterizable Yes
Integration time (ms) 2,5 / 16,67 / 20 / 100 ms
Basic conversion time, including integration time (ms) 9 / 23 / 27 / 107 ms
— additional conversion time for wire-break monitoring 9 ms
— additional conversion time for resistance measurement 150 ohm, 300 ohm, 600 ohm, Pt100, Pt200, Ni100: 2 ms, 6000 ohm, Pt500, Pt1000, Ni1000, LG-Ni1000, PTC: 4 ms
Interference voltage suppression for interference frequency f1 in Hz 400 / 60 / 50 / 10
Time for offset calibration (per module) Basic conversion time of the slowest channel
parameterizable Yes
Step: None Yes
Step: low Yes
Step: Medium Yes
Step: High Yes
Conversion time (per channel) 0.5 ms
for resistive load 1.5 ms
for capacitive load 2.5 ms
for inductive load 2.5 ms
for voltage measurement Yes
for current measurement as 2-wire transducer Yes
— Burden of 2-wire transmitter, max. 820 Ω
for current measurement as 4-wire transducer Yes
for resistance measurement with two-wire connection Yes; Only for PTC
for resistance measurement with three-wire connection Yes; All measuring ranges except PTC; internal compensation of the cable resistances
for resistance measurement with four-wire connection Yes; All measuring ranges except PTC
Linearity error (relative to input range), (+/-) 0.02 %
Temperature error (relative to input range), (+/-) 0.005 %/K; With TC type T 0.02 ± % / K
Crosstalk between the inputs, max. -80 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.02 %
Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-) 0.02 %
Linearity error (relative to output range), (+/-) 0.15 %
Temperature error (relative to output range), (+/-) 0.002 %/K
Crosstalk between the outputs, max. -100 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) 0.05 %
Temperature error of internal compensation ±6 °C
note regarding accuracy at temperatures below 0 °C, the figures for operating error and temperature error are doubled
Voltage, relative to input range, (+/-) 0.3 %0.1 %
Current, relative to input range, (+/-) 0.3 %0.1 %
Resistance, relative to input range, (+/-) 0.3 %0.1 %
Resistance thermometer, relative to input range, (+/-) 0.3 %; Ptxxx standard: ±1.5 K, Ptxxx climate: ±0.5 K, Nixxx standard: ±0.5 K, Nixxx climate: ±0.3 K0.1 %; Ptxxx standard: ±0.7 K, Ptxxx climate: ±0.2 K, Nixxx standard: ±0.3 K, Nixxx climate: ±0.15 K
Thermocouple, relative to input range, (+/-) 0.3 %; Type B: > 600 °C ±4.6 K, type E: > -200 °C ±1.5 K, type J: > -210 °C ±1.9 K, type K: > -200 °C ±2.4 K, type N: > -200 °C ±2.9 K, type R: > 0 °C ±4.7 K, type S: > 0 °C ±4.6 K, type T: > -200 °C ±2.4 K0.1 %; Type B: > 600 °C ±1.7 K, type E: > -200 °C ±0.7 K, type J: > -210 °C ±0.8 K, type K: > -200 °C ±1.2 K, type N: > -200 °C ±1.2 K, type R: > 0 °C ±1.9 K, type S: > 0 °C ±1.9 K, type T: > -200 °C ±0.8 K
Voltage, relative to output range, (+/-) 0.3 %0.2 %
Current, relative to output range, (+/-) 0.3 %0.2 %
Series mode interference (peak value of interference < rated value of input range), min. 40 dB
Common mode voltage, max. 10 V
Common mode interference, min. 60 dB
Diagnostics function Yes
Substitute values connectable Yes
Diagnostic alarm Yes
Limit value alarm Yes; two upper and two lower limit values in each case
Monitoring the supply voltage Yes
Wire-break Yes; only for input type 1 ... 5 V, 4 ... 20 mA, TC, R, RTD and output type current
Short-circuit Yes; Only for output type "voltage"
Overflow/underflow Yes
RUN LED Yes; green LED
ERROR LED Yes; red LED
Monitoring of the supply voltage (PWR-LED) Yes; green LED
Channel status display Yes; green LED
for channel diagnostics Yes; red LED
for module diagnostics Yes; red LED
between the channels No
between the channels, in groups of 42
between the channels and backplane bus Yes
Between the channels and load voltage L+ Yes
between the inputs (UCM) 20 V DC
Between the inputs and MANA (UCM) 10 V DC
between S- and MANA (UCM) 8 V DC
Isolation tested with 707 V DC (type test)
Siemens Eco Profile (SEP) Siemens EcoTech
environmental product declaration Yes
— global warming potential, (total) [CO2 eq] 38.6 kg
— global warming potential, (during production) [CO2 eq] 14.4 kg
— global warming potential, (during operation) [CO2 eq] 24.6 kg
— global warming potential, (after end of life cycle) [CO2 eq] -0.44 kg
signed firmware update No
data integrity No
horizontal installation, min. -25 °C; from FS04
horizontal installation, max. 60 °C
vertical installation, min. -25 °C; from FS04
vertical installation, max. 40 °C
Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Width 25 mm
Height 147 mm
Depth 129 mm
Weight, approx. 250 g
Note: Supplied incl. 40-pole push-in front connectors. Additional basic error and noise for integration time = 2.5 ms: Voltage: ±250 mV (±0.02%), ±80 mV (±0.05%), ±50 mV (±0.05%); resistance: 150 Ohms (±0.02%); resistance thermometer: Pt100 climate: ±0.08 K, Ni100 climate: ±0.08 K; thermoelement: Type B, R, S: ±3 K, type E, J, K, N, T: ±1 K
