Siemens 6ES7532-5HD00-0AB0

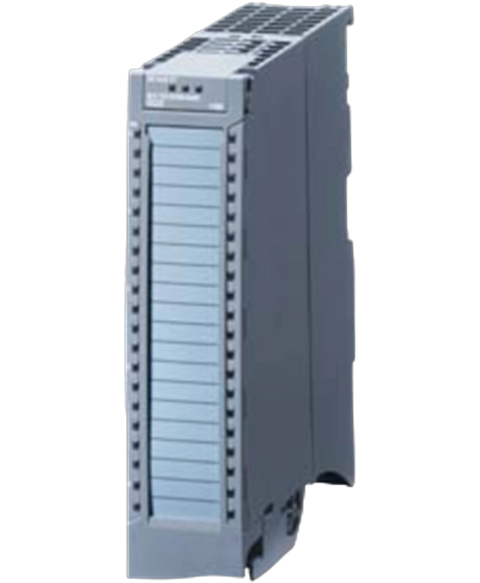

Siemens Analog Output Module, AQ 4×U,I ST, 16-Bit, SIMATIC S7-1500 (6ES7532-5HD00-0AB0)
This Siemens 6ES7532-5HD00-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805607242.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$809.39
(inc. GST)
In Stock
| Product type designation | AQ 4xU/I ST |
| HW functional status | from FS04 |
| Firmware version | V2.2.0 |
| FW update possible | Yes |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Prioritized startup | No |
| Output range scalable | No |
| STEP 7 TIA Portal configurable/integrated from version | V12 / V12 |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 |
| PROFINET from GSD version/GSD revision | V2.3 / - |
| Oversampling | No |
| MSO | Yes |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 190 mA; with 24 V DC supply |
| Power consumption from the backplane bus | 0.6 W |
| Power loss, typ. | 4 W |
| Number of analog outputs | 4 |
| Voltage output, short-circuit protection | Yes |
| Voltage output, short-circuit current, max. | 24 mA |
| Current output, no-load voltage, max. | 22 V |
| Cycle time (all channels), min. | 3.2 ms; independent of number of activated channels |
| 0 to 10 V | Yes |
| 1 V to 5 V | Yes |
| -5 V to +5 V | No |
| -10 V to +10 V | Yes |
| 0 to 20 mA | Yes |
| -20 mA to +20 mA | Yes |
| 4 mA to 20 mA | Yes |
| for voltage output two-wire connection | Yes |
| for voltage output four-wire connection | Yes |
| for current output two-wire connection | Yes |
| with voltage outputs, min. | 1 kΩ; 0.5 kOhm at 1 to 5 V |
| with voltage outputs, capacitive load, max. | 1 µF |
| with current outputs, max. | 750 Ω |
| with current outputs, inductive load, max. | 10 mH |
| shielded, max. | 800 m; for current, 200 m for voltage |
| Resolution with overrange (bit including sign), max. | 16 bit |
| Conversion time (per channel) | 0.5 ms |
| for resistive load | 1.5 ms |
| for capacitive load | 2.5 ms |
| for inductive load | 2.5 ms |
| Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-) | 0.02 % |
| Linearity error (relative to output range), (+/-) | 0.15 % |
| Temperature error (relative to output range), (+/-) | 0.002 %/K |
| Crosstalk between the outputs, max. | -100 dB |
| Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) | 0.05 % |
| note regarding accuracy | at temperatures below 0 °C, the figures for operating error and temperature error are doubled |
| Voltage, relative to output range, (+/-) | 0.3 %0.2 % |
| Current, relative to output range, (+/-) | 0.3 %0.2 % |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Diagnostic alarm | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes; Only for output type "current" |
| Short-circuit | Yes; Only for output type "voltage" |
| Overflow/underflow | Yes |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | Yes; red LED |
| for module diagnostics | Yes; red LED |
| between the channels | No |
| between the channels, in groups of | 4 |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | Yes |
| between S- and MANA (UCM) | 8 V DC |
| Isolation tested with | 707 V DC (type test) |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| Suitable for safety-related tripping of standard modules | Yes; From FS05 |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 37.6 kg |
| — global warming potential, (during production) [CO2 eq] | 11.1 kg |
| — global warming potential, (during operation) [CO2 eq] | 26.8 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.364 kg |
| Performance level according to ISO 13849-1 | PL d |
| Category according to ISO 13849-1 | Cat. 3 |
| SIL acc. to IEC 62061 | SIL 2 |
| remark on safety-oriented shutdown | https://support.industry.siemens.com/cs/de/en/view/39198632 |
| signed firmware update | No |
| data integrity | No |
| horizontal installation, min. | -30 °C; From FS06 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; From FS06 |
| vertical installation, max. | 40 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 310 g |
