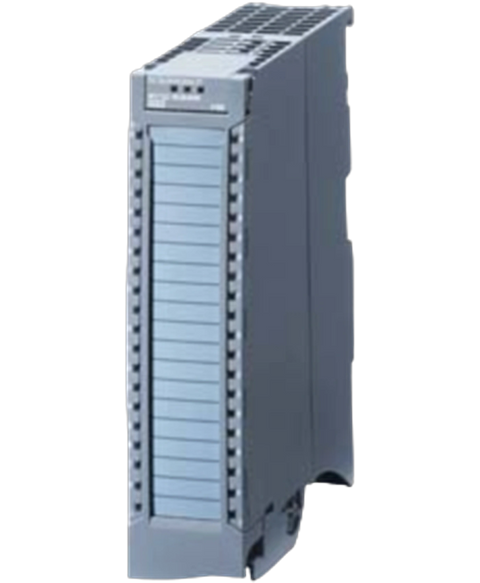

Siemens 6ES75221BF000AB0
SIMATIC S7-1500, digital output module DQ 8x24 V DC,2A HF; 8 channels in groups of 8; 8 A per group
This Siemens 6ES75221BF000AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27102145989.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$332.27
(inc. GST)
In Stock
| Product type designation | DQ 8x24VDC/2A HF |
| HW functional status | From FS03 |
| Firmware version | V2.2.0 |
| FW update possible | Yes |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Prioritized startup | Yes |
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 / - |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 |
| PROFINET from GSD version/GSD revision | V2.3 / - |
| DQ | Yes |
| DQ with energy-saving function | Yes; with an application |
| PWM | Yes |
| Cam control (switching at comparison values) | No |
| Oversampling | No |
| MSO | Yes |
| Integrated operating cycle counter | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes; through internal protection with 10 A per group |
| Current consumption, max. | 40 mA; 20 mA per group, no output is activated. |
| Power consumption from the backplane bus | 0.9 W |
| Power loss, typ. | 5.6 W; 6.8 W for PWM operation |
| Type of digital output | Transistor |
| Number of digital outputs | 8 |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| output type acc. to IEC 61131, type 2 | Yes |
| Short-circuit protection | Yes |
| Response threshold, typ. | 3 A |
| Limitation of inductive shutdown voltage to | -17 V |
| Controlling a digital input | Yes |
| Freely usable digital output | Yes |
| PWM output | Yes; FS02 and FW V2.1.0 or higher |
| — Number, max. | 2 |
| — Cycle duration, parameterizable | Yes; 2 ... 100 ms continuous |
| — ON period, min. | 0 % |
| — ON period, max. | 100 % |
| — Resolution of the duty cycle | 0.1 % |
| — Minimum pulse duration | 300 µs |
| on lamp load, max. | 10 W10 Hz |
| lower limit | 12 Ω |
| upper limit | 4 kΩ |
| for signal "1", min. | L+ (-0.8 V) |
| for signal "1" rated value | 2 A |
| for signal "1" permissible range, max. | 2.4 A; note derating specification for PWM operation |
| for signal "0" residual current, max. | 0.5 mA |
| "0" to "1", typ. | 80 µs |
| "0" to "1", max. | 100 µs |
| "1" to "0", typ. | 300 µs |
| "1" to "0", max. | 500 µs |
| for logic links | Yes |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 100 Hz; With PWM operation: 500 Hz |
| with inductive load, max. | 0.5 Hz; According to IEC 60947-5-1, DC-13; max. 500 Hz with PWM operation only with external circuit; see additional description in the manual |
| Current per channel, max. | 2 A; see additional description in the manual |
| Current per group, max. | 8 A; see additional description in the manual |
| Current per module, max. | 16 A; see additional description in the manual |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Diagnostic alarm | Yes |
| Maintenance interrupt | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | No |
| Short-circuit | Yes |
| Group error | Yes |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| MAINT LED | Yes; Yellow LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | Yes; red LED |
| for module diagnostics | Yes; red LED |
| between the channels | No |
| between the channels, in groups of | 4 |
| between the channels and backplane bus | Yes |
| Isolation tested with | 707 V DC (type test) |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| Suitable for safety functions | No |
| Suitable for safety-related tripping of standard modules | Yes; From FS03 |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 43.8 kg |
| — global warming potential, (during production) [CO2 eq] | 9.5 kg |
| — global warming potential, (during operation) [CO2 eq] | 34.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.231 kg |
| Performance level according to ISO 13849-1 | PL d |
| Category according to ISO 13849-1 | Cat. 3 |
| SIL acc. to IEC 62061 | SIL 2 |
| remark on safety-oriented shutdown | https://support.industry.siemens.com/cs/de/en/view/39198632 |
| signed firmware update | No |
| data integrity | No |
| horizontal installation, min. | -30 °C; From FS06 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; From FS06 |
| vertical installation, max. | 40 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 240 g |
