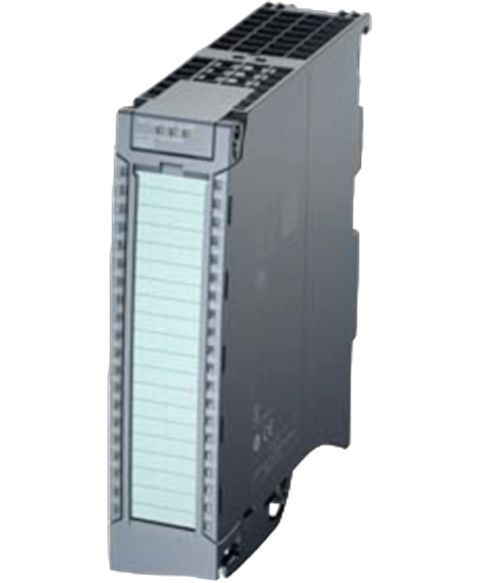

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7522-5HH00-0AB0
Siemens 6ES7522-5HH00-0AB0 digital output module, 16 outputs, 230VAC, S7-1500.
This Siemens 6ES7522-5HH00-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801436223.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$758.27
(inc. GST)
In Stock
| Product type designation | DQ 16x 230 V AC/2 A ST (relay) |
| HW functional status | FS01 |
| Firmware version | V1.1.0 |
| FW update possible | Yes |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Prioritized startup | Yes |
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 / - |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 |
| PROFINET from GSD version/GSD revision | V2.3 / - |
| DQ | Yes |
| DQ with energy-saving function | No |
| PWM | No |
| Oversampling | No |
| MSO | Yes |
| Integrated operating cycle counter | Yes; FW V1.1.0 or higher |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 185 mA |
| Rated value (AC) | 230 V; 24 V DC to 120 V DC / 24 V AC to 230 V AC |
| Power consumption from the backplane bus | 0.8 W |
| Power loss, typ. | 5 W |
| Type of digital output | Relays |
| Number of digital outputs | 16 |
| Current-sinking | Yes |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | No |
| Controlling a digital input | Yes |
| Size of motor starters according to NEMA, max. | 5 |
| on lamp load, max. | 50 W (230 V AC), 5 W (24 V DC)1 Hz |
| for signal "1" rated value | 2 A |
| for signal "1" permissible range, min. | 10 mA; 10 V |
| for signal "1" permissible range, max. | 2 A; thermal continuous current |
| for signal "0" residual current, max. | 0 A |
| for logic links | Yes |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 1 Hz |
| with inductive load, max. | 0.5 Hz |
| Current per channel, max. | 2 A; see additional description in the manual |
| Current per group, max. | 4 A; see additional description in the manual |
| Current per module, max. | 32 A; see additional description in the manual |
| Number of relay outputs | 16 |
| Rated supply voltage of relay coil L+ (DC) | 24 V |
| Current consumption of relays (coil current of all relays), typ. | 150 mA |
| external protection for relay outputs | Miniature circuit breaker B10 / B16 |
| Contact connection (internal) | No |
| Number of operating cycles, max. | see additional description in the manual |
| — with inductive load, max. | 2 A; see additional description in the manual |
| — with resistive load, max. | 2 A; see additional description in the manual |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Substitute values connectable | Yes |
| Diagnostic alarm | Yes |
| Maintenance interrupt | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | No |
| Short-circuit | No |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| MAINT LED | Yes; Yellow LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | Yes; red LED |
| between the channels | No |
| between the channels, in groups of | 2 |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | Yes |
| between different circuits | 250 V AC between the channels and the supply voltage L+; 250 V AC between the channels and the backplane bus; 500 V AC between the channels |
| Isolation tested with | Between channels: 3 100 V DC; between channels backplane bus: 3 100 V DC; between L+ and backplane bus: 707 V DC (type test) |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| Suitable for safety functions | No |
| Suitable for safety-related tripping of standard modules | Yes; From FS02 |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 43.8 kg |
| — global warming potential, (during production) [CO2 eq] | 9.5 kg |
| — global warming potential, (during operation) [CO2 eq] | 34.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.231 kg |
| Performance level according to ISO 13849-1 | PL c |
| Category according to ISO 13849-1 | Cat. 2 |
| SIL acc. to IEC 62061 | SIL 1 |
| remark on safety-oriented shutdown | https://support.industry.siemens.com/cs/de/en/view/39198632 |
| signed firmware update | No |
| data integrity | No |
| horizontal installation, min. | -25 °C; From FS02 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -25 °C; From FS02 |
| vertical installation, max. | 40 °C |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 350 g |
