Siemens 6ES7522-1BH10-0AA0

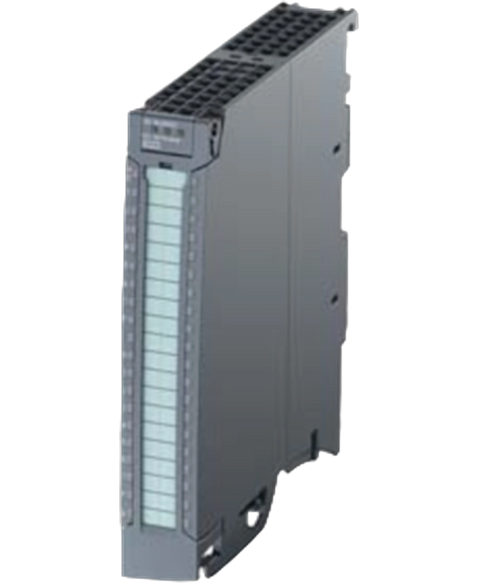

Siemens 6ES7522-1BH10-0AA0 S7-1500 digital output module, 16DO, 24VDC.
This Siemens 6ES7522-1BH10-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805289446.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$370.61
(inc. GST)
In Stock
| Product type designation | DQ 16x24VDC/0.5A BA |
| HW functional status | from FS01 |
| Firmware version | V1.0.0 |
| FW update possible | Yes |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Prioritized startup | Yes |
| STEP 7 TIA Portal configurable/integrated from version | V13 / V13 |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 |
| PROFINET from GSD version/GSD revision | V2.3 / - |
| DQ | Yes |
| DQ with energy-saving function | No |
| PWM | No |
| Oversampling | No |
| MSO | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes; through internal protection with 7 A per group |
| Current consumption, max. | 30 mA |
| Power consumption from the backplane bus | 1.15 W |
| Power loss, typ. | 2.2 W |
| Type of digital output | Transistor |
| Number of digital outputs | 16 |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | No |
| output type acc. to IEC 61131, type 0.5 | Yes |
| Short-circuit protection | Yes |
| Response threshold, typ. | 1 A |
| Limitation of inductive shutdown voltage to | L+ (-53 V) |
| Controlling a digital input | Yes |
| with resistive load, max. | 0.5 A100 Hz |
| on lamp load, max. | 5 W10 Hz |
| lower limit | 48 Ω |
| upper limit | 12 kΩ |
| for signal "1", min. | L+ (-0.8 V) |
| for signal "1" rated value | 0.5 A |
| for signal "1" permissible range, max. | 0.5 A |
| for signal "0" residual current, max. | 0.5 mA |
| "0" to "1", max. | 100 µs |
| "1" to "0", max. | 500 µs |
| for logic links | Yes |
| for uprating | No |
| for redundant control of a load | Yes |
| with inductive load, max. | 0.5 Hz; According to IEC 60947-5-1, DC-13 |
| Current per channel, max. | 0.5 A; see additional description in the manual |
| Current per group, max. | 4 A; see additional description in the manual |
| Current per module, max. | 8 A; see additional description in the manual |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
| Diagnostics function | No |
| Substitute values connectable | No |
| Diagnostic alarm | No |
| Maintenance interrupt | No |
| Monitoring the supply voltage | No |
| Wire-break | No |
| Short-circuit | No |
| Group error | No |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | No |
| between the channels | No |
| between the channels, in groups of | 8 |
| between the channels and backplane bus | Yes |
| Isolation tested with | 707 V DC (type test) |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| Suitable for safety functions | No |
| Suitable for safety-related tripping of standard modules | Yes; From FS02 |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 43.8 kg |
| — global warming potential, (during production) [CO2 eq] | 9.5 kg |
| — global warming potential, (during operation) [CO2 eq] | 34.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.231 kg |
| Performance level according to ISO 13849-1 | PL d |
| Category according to ISO 13849-1 | Cat. 3 |
| SIL acc. to IEC 62061 | SIL 2 |
| remark on safety-oriented shutdown | https://support.industry.siemens.com/cs/de/en/view/39198632 |
| signed firmware update | No |
| data integrity | No |
| horizontal installation, min. | -30 °C; from FS04 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; from FS04 |
| vertical installation, max. | 40 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 25 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 230 g |
| Note: | Supplied incl. 40-pole push-in front connectors |
