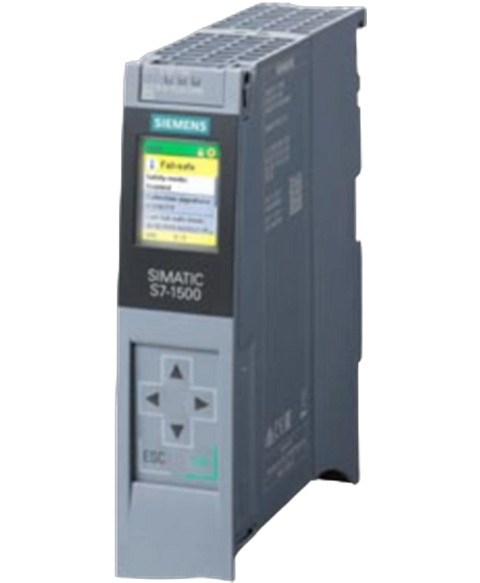

Siemens 6ES75131FL020AB0
SIMATIC S7-1500F, CPU 1513F-1 PN, CENTRAL PROCESSING UNIT WITH WORKING MEMORY 450 KB FOR PROGRAM AND 1.5 MB FOR DATA, 1. INTERFACE: PROFINET IRT WITH 2 PORT SWITCH, 40 NS BIT-PERFORMANCE, SIMATIC MEMORY CARD NECESSARY
This Siemens 6ES75131FL020AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modular plcs range and is referenced internally as PartLogic SKU PL27101995055.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,235.07
(inc. GST)
In Stock
| Product type designation | CPU 1513F-1 PN |
| HW functional status | FS03 |
| Firmware version | V2.9 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | Yes; Distributed and central; with minimum OB 6x cycle of 500 µs (distributed) and 1 ms (central) |
| STEP 7 TIA Portal configurable/integrated from version | V17 (FW V2.9) / V15 (FW V2.5) or higher; with older TIA Portal versions configurable as 6ES7513-1FL01-0AB0 |
| via dataset | Yes |
| Screen diagonal [cm] | 3.45 cm |
| Number of keys | 8 |
| Mode buttons | 2 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains/voltage failure stored energy time | 5 ms |
| Repeat rate, min. | 1/s |
| Current consumption (rated value) | 0.7 A |
| Current consumption, max. | 0.95 A |
| Inrush current, max. | 1.9 A; Rated value |
| I²t | 0.02 A²·s |
| Infeed power to the backplane bus | 10 W |
| Power consumption from the backplane bus (balanced) | 5.5 W |
| Power loss, typ. | 5.7 W |
| Number of slots for SIMATIC memory card | 1 |
| SIMATIC memory card required | Yes |
| integrated (for program) | 450 kbyte |
| integrated (for data) | 1.5 Mbyte |
| Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| maintenance-free | Yes |
| for bit operations, typ. | 40 ns |
| for word operations, typ. | 48 ns |
| for fixed point arithmetic, typ. | 64 ns |
| for floating point arithmetic, typ. | 256 ns |
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs |
| Number range | 1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 9990 ... 65 535 |
| Size, max. | 1.5 Mbyte; For DBs with absolute addressing, the max. size is 64 KB450 kbyte16 kbyte |
| Number of free cycle OBs | 100 |
| Number of time alarm OBs | 20 |
| Number of delay alarm OBs | 20 |
| Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 500 µs |
| Number of process alarm OBs | 50 |
| Number of DPV1 alarm OBs | 3 |
| Number of isochronous mode OBs | 2 |
| Number of technology synchronous alarm OBs | 2 |
| Number of startup OBs | 100 |
| Number of asynchronous error OBs | 4 |
| Number of synchronous error OBs | 2 |
| Number of diagnostic alarm OBs | 1 |
| per priority class | 24; Up to 8 possible for F-blocks |
| Number | 2 048Any (only limited by the main memory)16 |
| — adjustable | Yes |
| Retentive data area (incl. timers, counters, flags), max. | 128 kbyte; In total; available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB |
| Extended retentive data area (incl. timers, counters, flags), max. | 1.5 Mbyte; When using PS 6 0W 24/48/60 V DC HF |
| Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| Retentivity adjustable | Yes |
| Retentivity preset | No |
| per priority class, max. | 64 kbyte; max. 16 KB per block |
| Number of IO modules | 2 048; max. number of modules / submodules |
| Inputs | 32 kbyte; All inputs are in the process image |
| Outputs | 32 kbyte; All outputs are in the process image |
| — Inputs (volume) | 8 kbyte |
| — Outputs (volume) | 8 kbyte |
| Number of subprocess images, max. | 32 |
| Number of distributed IO systems | 32; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET or PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules or links (e.g. IE/PB-Link) |
| Via CM | 6; A maximum of 6 CMs (PROFINET + PROFIBUS) can be inserted in total |
| integrated | 1 |
| Modules per rack, max. | 32; CPU + 31 modules |
| Number of lines, max. | 1 |
| Number of PtP CMs | the number of connectable PtP CMs is only limited by the number of available slots |
| Type | Hardware clock |
| Backup time | 6 wk; At 40 °C ambient temperature, typically |
| Deviation per day, max. | 10 s; Typ.: 2 s |
| supported | Yes |
| in AS, master | Yes |
| in AS, device | Yes |
| on Ethernet via NTP | Yes |
| Number of PROFINET interfaces | 1 |
| RJ 45 (Ethernet) | Yes; X1 |
| Number of ports | 2 |
| integrated switch | Yes |
| IP protocol | Yes; IPv4 |
| PROFINET IO Controller | Yes |
| PROFINET IO Device | Yes |
| SIMATIC communication | Yes |
| Open IE communication | Yes; Optionally also encrypted |
| Web server | Yes |
| Media redundancy | Yes; MRP Automanager according to IEC 62439-2 Edition 2.0 |
| — PG/OP communication | Yes |
| — Isochronous mode | YesNo |
| — Direct data exchange | Yes; Requirement: IRT and isochronous mode (MRPD optional) |
| — IRT | Yes |
| — PROFIenergy | Yes; per user program |
| — Prioritized startup | Yes; Max. 32 PROFINET devices |
| — Number of connectable IO Devices, max. | 128; In total, up to 512 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET |
| — Of which IO devices with IRT, max. | 64 |
| — Number of connectable IO Devices for RT, max. | 128 |
| — of which in line, max. | 128 |
| — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8; in total across all interfaces |
| — Number of IO Devices per tool, max. | 8 |
| — Updating times | The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data |
| — for send cycle of 250 µs | 250 μs to 4 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 500 µs of the isochronous OB is decisive250 µs to 128 ms |
| — for send cycle of 500 µs | 500 µs to 8 ms500 µs to 256 ms |
| — for send cycle of 1 ms | 1 ms to 16 ms1 ms to 512 ms |
| — for send cycle of 2 ms | 2 ms to 32 ms2 ms to 512 ms |
| — for send cycle of 4 ms | 4 ms to 64 ms4 ms to 512 ms |
| — With IRT and parameterization of "odd" send cycles | Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs ... 3 875 µs) |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 4 |
| — activation/deactivation of I-devices | Yes; per user program |
| — Asset management record | Yes; per user program |
| 100 Mbps | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Industrial Ethernet status LED | Yes |
| PROFIsafe | Yes; V2.4 / V2.6 |
| Number of connections, max. | 128; via integrated interfaces of the CPU and connected CPs / CMs |
| Number of connections reserved for ES/HMI/web | 10 |
| Number of connections via integrated interfaces | 88 |
| Number of S7 routing paths | 16 |
| H-Sync forwarding | Yes |
| — Media redundancy | Yes; only via 1st interface (X1) |
| — MRP | Yes; MRP Automanager according to IEC 62439-2 Edition 2.0, MRP Manager; MRP Client |
| — MRP interconnection, supported | Yes; as MRP ring node according to IEC 62439-2 Edition 3.0 |
| — MRPD | Yes; Requirement: IRT |
| — Switchover time on line break, typ. | 200 ms; For MRP, bumpless for MRPD |
| — Number of stations in the ring, max. | 50 |
| PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| S7 routing | Yes |
| S7 communication, as server | Yes |
| S7 communication, as client | Yes |
| User data per job, max. | See online help (S7 communication, user data size) |
| TCP/IP | Yes |
| — Data length, max. | 64 kbyte2 kbyte; 1 472 bytes for UDP broadcast |
| — several passive connections per port, supported | Yes |
| ISO-on-TCP (RFC1006) | Yes |
| UDP | Yes |
| — UDP multicast | Yes; Max. 5 multicast circuits |
| DHCP | Yes |
| DNS | Yes |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| Encryption | Yes; Optional |
| HTTP | Yes; Standard and user pages |
| HTTPS | Yes; Standard and user pages |
| Runtime license required | Yes |
| OPC UA Client | Yes |
| — Application authentication | Yes |
| — Security policies | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| — User authentication | "anonymous" or by user name & password |
| — Number of connections, max. | 4 |
| — Number of nodes of the client interfaces, recommended max. | 1 000 |
| — Number of elements for one call of OPC_UA_NodeGetHandleList/OPC_UA_ReadList/OPC_UA_WriteList, max. | 300 |
| — Number of elements for one call of OPC_UA_NameSpaceGetIndexList, max. | 20 |
| — Number of elements for one call of OPC_UA_MethodGetHandleList, max. | 100 |
| — Number of simultaneous calls of the client instructions for session management, per connection, max. | 1 |
| — Number of simultaneous calls of the client instructions for data access, per connection, max. | 5 |
| — Number of registerable nodes, max. | 5 00010 000 |
| — Number of registerable method calls of OPC_UA_MethodCall, max. | 100 |
| — Number of inputs/outputs when calling OPC_UA_MethodCall, max. | 20 |
| OPC UA Server | Yes; Data access (read, write, subscribe), method call, custom address space |
| — GDS support (certificate management) | Yes |
| — Number of sessions, max. | 32 |
| — Number of accessible variables, max. | 50 000 |
| — Number of subscriptions per session, max. | 20 |
| — Sampling interval, min. | 100 ms |
| — Publishing interval, min. | 500 ms |
| — Number of server methods, max. | 20 |
| — Number of inputs/outputs per server method, max. | 20 |
| — Number of monitored items, recommended max. | 1 000; for 1 s sampling interval and 1 s send interval |
| — Number of server interfaces, max. | 10 of each "Server interfaces" / "Companion specification" type and 20 of the type "Reference namespace" |
| — Number of nodes for user-defined server interfaces, max. | 1 000 |
| Alarms and Conditions | Yes |
| MODBUS | Yes; MODBUS TCP |
| Equidistance | Yes |
| Number of login stations for message functions, max. | 32 |
| Program alarms | Yes |
| Number of configurable program messages, max. | 5 000; Program messages are generated by the "Program_Alarm" block, ProDiag or GRAPH |
| Number of loadable program messages in RUN, max. | 2 500 |
| Number of program alarms | 600 |
| Number of alarms for system diagnostics | 100 |
| Number of alarms for motion technology objects | 80 |
| Joint commission (Team Engineering) | Yes; Parallel online access possible for up to 5 engineering systems |
| Status block | Yes; Up to 8 simultaneously (in total across all ES clients) |
| Single step | No |
| Number of breakpoints | 8 |
| Status/control variable | Yes; without fail-safe |
| Variables | inputs/outputs, bit memories, DBs, peripheral I/Os (without fail-safe), times, counters |
| — of which status variables, max. | 200; per job |
| — of which control variables, max. | 200; per job |
| Forcing | Yes; without fail-safe |
| Forcing, variables | peripheral inputs/outputs (without fail-safe) |
| Number of variables, max. | 200 |
| present | Yes |
| Number of entries, max. | 1 000 |
| — of which powerfail-proof | 500 |
| Number of configurable Traces | 4; Up to 512 KB of data per trace are possible |
| RUN/STOP LED | Yes |
| ERROR LED | Yes |
| MAINT LED | Yes |
| STOP ACTIVE LED | Yes |
| Connection display LINK TX/RX | Yes |
| Motion Control | Yes; Note: The number of technology objects affects the cycle time of the PLC program; selection guide via the TIA Selection Tool |
| Number of available Motion Control resources for technology objects | 800 |
| — per speed-controlled axis | 40 |
| — per positioning axis | 80 |
| — per synchronous axis | 160 |
| — per external encoder | 80 |
| — per output cam | 20 |
| — per cam track | 160 |
| — per probe | 40 |
| — Number of positioning axes at motion control cycle of 4 ms (typical value) | 5 |
| — Number of positioning axes at motion control cycle of 8 ms (typical value) | 10 |
| PID_Compact | Yes; Universal PID controller with integrated optimization |
| PID_3Step | Yes; PID controller with integrated optimization for valves |
| PID-Temp | Yes; PID controller with integrated optimization for temperature |
| High-speed counter | Yes |
| Performance level according to ISO 13849-1 | PLe |
| SIL acc. to IEC 61508 | SIL 3 |
| — Low demand mode: PFDavg in accordance with SIL3 | < 2.00E-05 |
| — High demand/continuous mode: PFH in accordance with SIL3 | < 1.00E-09 |
| horizontal installation, min. | -25 °C; No condensation |
| horizontal installation, max. | 60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off |
| vertical installation, min. | -25 °C; No condensation |
| vertical installation, max. | 40 °C; Display: 40 °C, at an operating temperature of typically 40 °C, the display is switched off |
| min. | -40 °C |
| max. | 70 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| — LAD | Yes; incl. failsafe |
| — FBD | Yes; incl. failsafe |
| — STL | Yes |
| — SCL | Yes |
| — GRAPH | Yes |
| User program protection/password protection | Yes |
| Copy protection | Yes |
| Block protection | Yes |
| Password for display | Yes |
| Protection level: Write protection | Yes; Specific write protection both for Standard and for Failsafe |
| Protection level: Read/write protection | Yes |
| Protection level: Write protection for Failsafe | Yes |
| Protection level: Complete protection | Yes |
| lower limit | adjustable minimum cycle time |
| upper limit | adjustable maximum cycle time |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 405 g |
Struggling to find what you're looking for?
Can’t find what you’re looking for? Get in touch — we can source it for you.
